Question
Apply the junction rule at point a in Figure 21.55.

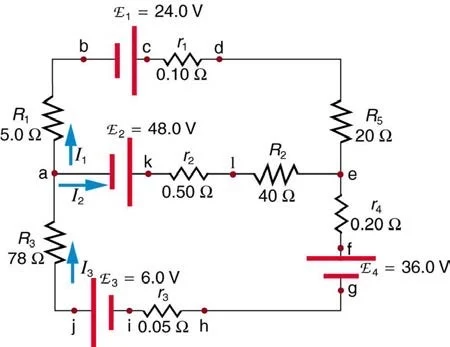

<b>Figure 21.55</b> A cicuit schematic.
Figure 21.55 A cicuit schematic.
Question by OpenStax is licensed under CC BY 4.0
Final Answer

I3=I1+I2I_3 = I_1 + I_2

Solution video

OpenStax College Physics for AP® Courses, Chapter 21, Problem 35 (Problems & Exercises)

OpenStax College Physics, Chapter 21, Problem 35 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .
Video Transcript
This is College Physics Answers with Shaun Dychko. The Junction Rule says that all the currents going into a point equals the sum of all the currents leaving that point or that junction. And so this junction here has a current I3 going into it. So we have the total of all the currents going in of which there’s only one, so it’s I3 equals the total of the currents coming out which is I1 and I2. So there’s our Junction Rule written out separately.
