Question

A $1.00 \textrm{ M}\Omega$ voltmeter is placed in parallel with a $75.0 \textrm{ k}\Omega$ resistor in a circuit. (a) Draw a circuit diagram of the connection. (b) What is the resistance of the combination? (c) If the voltage across the combination is kept the same as it was across the $75.0 \textrm{ k}\Omega$ resistor alone, what is the percent increase in current? (d) If the current through the combination is kept the same as it was through the $75.0 \textrm{ k}\Omega$ resistor alone, what is the percentage decrease in voltage? (e) Are the changes found in parts (c) and (d) significant? Discuss.

Final Answer

- See solution video for the circuit schematic
- $6.98 \times 10^4 \Omega$
- $7.50\% \textrm{ increase}$
- $6.98\% \textrm{ decrease}$

### Solution video

# OpenStax College Physics for AP® Courses, Chapter 21, Problem 53 (Problems & Exercises)

vote with a rating of
votes with an average rating of
.

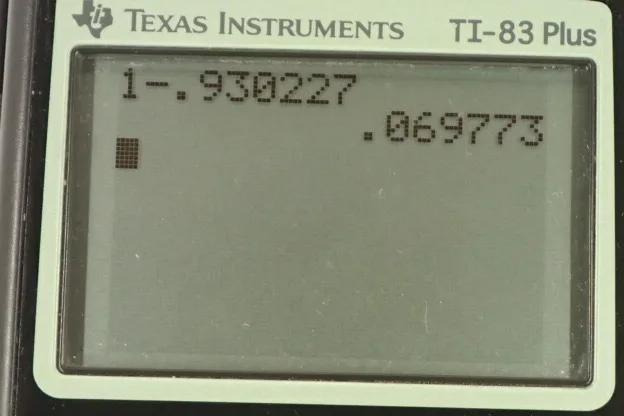

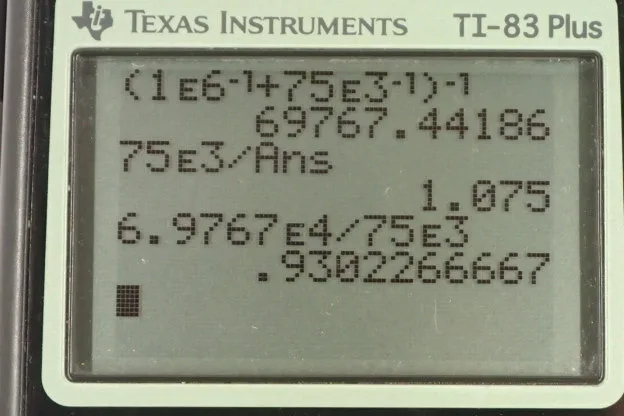

### Calculator Screenshots

Video Transcript

This is College Physics Answers with Shaun Dychko. We have a voltmeter put in parallel with some load resistance and here's the circuit diagram describing that. This voltmeter has some resistance
