Question
Apply the loop rule to loop abcdefgha in Figure 21.27.

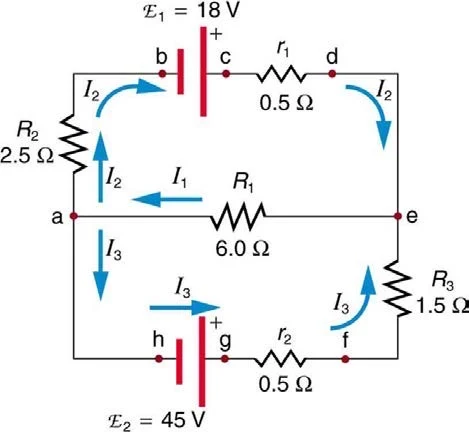

<b>Figure 21.27</b>. A circuit schematic.
Figure 21.27. A circuit schematic.
Question by OpenStax is licensed under CC BY 4.0
Final Answer

see video solution for equation.

Solution video

OpenStax College Physics for AP® Courses, Chapter 21, Problem 31 (Problems & Exercises)

OpenStax College Physics, Chapter 21, Problem 31 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .
Video Transcript
This is College Physics Answers with Shaun Dychko. This question asks us to traverse a loop beginning at point a and going in this direction to point b, c, d, e, f, g and then back to a. So we’re going in this direction to the loop here and we have to create our equation from the loop rule. So, one step at a time. We’ll start at point a and we’re going to traverse in the direction of the current across the resistors that means we have a negative. Negative I2 multiplied by R2 is that term. And then going from the negative terminal to the positive terminal is a positive change in potential. And so we have plus EMF one and then minus I2 times little r1. And then we get to this point it gets a little bit strange because we’re traversing the loop in the opposite direction to the current through this resistor number three. And so this is going to be a positive current three multiplied R3. And then likewise for this resistor we are traversing it from right to left, despite the current going from left to right. So we’re traversing the opposite direction from the current. So this resistor also is a plus I3 times little r2. And then across this EMF, we end at the negative terminal and we begin at the positive terminal so this is a reduction in a potential. And so this is minus EMF two and we end up at point aagain. And so all of this equals zero.
