Question

(a) What is the internal resistance of a voltage source if its terminal voltage drops by 2.00 V when the current supplied increases by 5.00 A? (b) Can the emf of the voltage source be found with the information supplied?

Final Answer

- $0.400 \Omega$
- No, the EMF can not be determined. We are given 4 equations, but we have 5 unknowns, so the system of equations can not be solved completely. A system of equations always needs as many equations as unknowns in order to solve it completely.

### Solution video

# OpenStax College Physics for AP® Courses, Chapter 21, Problem 25 (Problems & Exercises)

vote with a rating of
votes with an average rating of
.

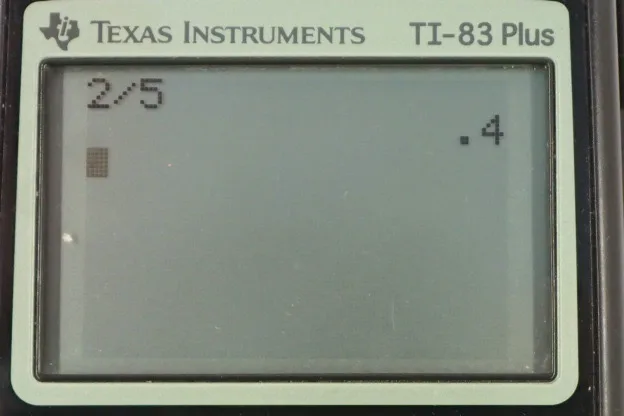

### Calculator Screenshots

Video Transcript

This is College Physics Answers with Shaun Dychko. We have a circuit here with an EMF and internal resistance. There must be some external resistance as well although we don't know much about it and it doesn't really matter. Now what we are told is that the terminal voltage across this battery reduces by two volts when the current increases by 5 amps. So we're going to use that information to figure out what this internal resistance must be. We know that terminal voltage is EMF minus the voltage across the internal resistance. So that's why I wrote
