The timing device in an automobile’s intermittent wiper system is based on an RCRC time constant and utilizes a 0.500μF0.500 \mu \textrm{F} capacitor and a variable resistor. Over what range must RR be made to vary to achieve time constants from 2.002.00 to 15.0 s15.0 \textrm{ s}?
Question by OpenStax is licensed under CC BY 4.0
Final Answer

R varies from 4.00 MΩ4.00 \textrm{ M}\Omega to 30.0 MΩ30.0 \textrm{ M}\Omega

Solution video

OpenStax College Physics for AP® Courses, Chapter 21, Problem 63 (Problems & Exercises)

OpenStax College Physics, Chapter 21, Problem 63 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

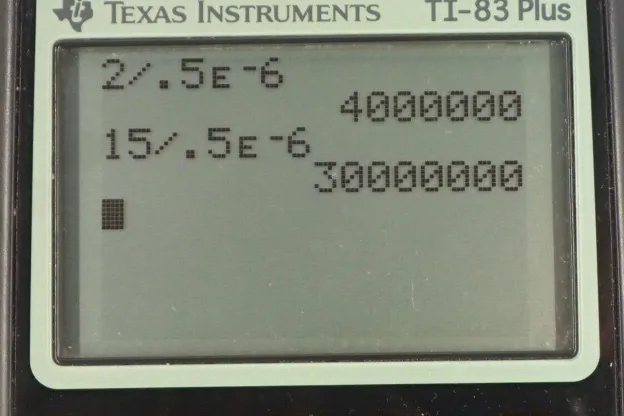

  • OpenStax College Physics, Chapter 21, Problem 63 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. We’re told that the capacitance in our RC Circuit is 0.5 micro Farads which is 0.5 times ten to the minus six Farads. The time constant is a product is the resistance multiplied by the capacitance. And we can solve for R by dividing both sides by C. And we get the minimum resistance when you have the time constant at its minimum of two seconds is divided by the capacitance 0.5 times ten to the minus six Farads which is 4.00 Mega Ohms. When the resistance is at its maximum, that’s when you have the maximum time constant divided by capacitance. So we substitute 15 seconds for tau and we get 30.0 Mega Ohms. And so the resistance must be able to vary from four Mega Ohms to 30 Mega Ohms to change the frequency of the oscillation of the wiper blades.
