Problem3
Section 21.1: Resistors in Series and Parallel

Question

What are the largest and smallest resistances you can obtain by connecting a , a , and a resistor together?

Question by OpenStax is licensed under CC BY 4.0

Final Answer

Rmax=786ΩR_{max} = 786\Omega

Rmin=20.3ΩR_{min} = 20.3 \Omega

Solution video

0:56

This is a 13-second preview. Get access to the full video by starting your free 7-day trial.

5.0 (3)
187 views

Calculator Screenshots

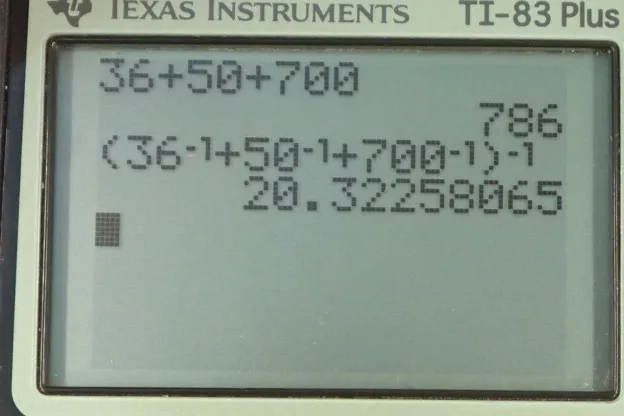

Calculator screenshot

Video Transcript

This is College Physics Answers with Shaun Dychko. To get the largest resistance with a collection of resistors you have to connect them in series. The total series resistance will be the sum of each resistance added together directly. So we have 36 ohms plus 50 ohms plus 700 ohms, making 786 ohms in total. The minimum resistance you get by connecting them in parallel. The total parallel resistance will be the reciprocal, and that's what the power of negative one means there, take the reciprocal of the sum of the reciprocals of each resistance. So we have 36 to the power of one, negative one I should say, plus 50 ohms to the power of negative one, plus 700 ohms to the power of negative one. Add all that together, take the reciprocal of that sum and you end up with 20.3 ohms. That's the minimum total resistance possible.
