Question
The 300-m-diameter Arecibo radio telescope pictured in Figure 27.28 detects radio waves with a 4.00 cm average wavelength. (a) What is the angle between two just-resolvable point sources for this telescope? (b) How close together could these point sources be at the 2 million light year distance of the Andromeda galaxy?

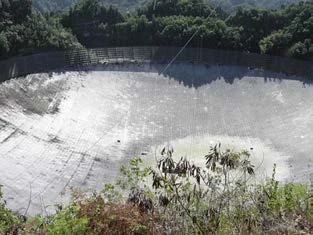

<b>Figure 27.28</b> A 305-m-diameter natural bowl at Arecibo in Puerto Rico is lined with reflective material, making it into a radio telescope. It is the largest curved focusing dish in the world. Although "D" for Arecibo is much larger than for the Hubble Telescope, it detects much longer wavelength radiation and its diffraction limit is significantly poorer than Hubble’s. Arecibo is still very useful, because important information is carried by radio waves that is not carried by visible light.
Figure 27.28 A 305-m-diameter natural bowl at Arecibo in Puerto Rico is lined with reflective material, making it into a radio telescope. It is the largest curved focusing dish in the world. Although "D" for Arecibo is much larger than for the Hubble Telescope, it detects much longer wavelength radiation and its diffraction limit is significantly poorer than Hubble’s. Arecibo is still very useful, because important information is carried by radio waves that is not carried by visible light.
Question by OpenStax is licensed under CC BY 4.0
Final Answer
  1. 1.63×104 rad1.63 \times 10^{-4} \textrm{ rad}
  2. 325 ly325 \textrm{ ly}

Solution video

OpenStax College Physics for AP® Courses, Chapter 27, Problem 57 (Problems & Exercises)

OpenStax College Physics, Chapter 27, Problem 57 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

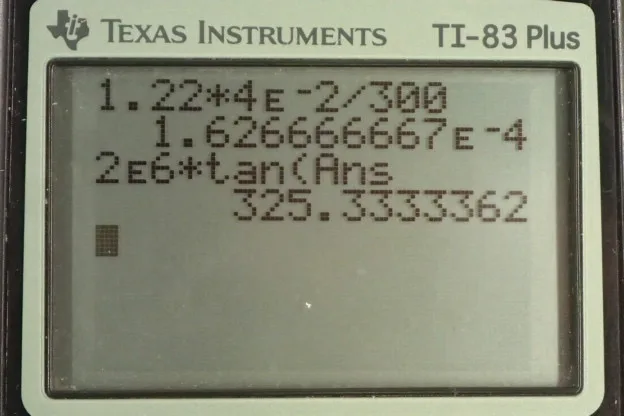

  • OpenStax College Physics, Chapter 27, Problem 57 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. The RAC Bow radio telescope has a diameter of 300 meters and it receives wavelengths of four centimetres. These are radio waves. And the question is what is the minimum resolvable angle between two objects for this type of telescope. So the really good criterion tells us that, that's 1.22 times lambda over d. So the 1.22 times four times ten to the minus two meters. That's the wavelength written in meters and divide that by the size of the mirror which is 300 meters. So this thing is as a mirror that reflects the radio waves up to a sensor that's not shown in the picture it would be somewhere up here. So that's 1.63 times ten to the minus four radians is the minimum angle between two objects in order to distinguish them. And now part b says consider these objects to be two million light years away, how far are they separated given this minimum angle. Well we can think of this as a triangle between the two objects here and here and this angle is theta that we just found in part a. And so tangent of theta is gonna be this delta Y distance between the objects divided by the adjacent which is the distance from the earth here to one of the objects. So solving for delta Y by multiplying both sides by x we get the delta Y is x Tan theta. So that's two times ten to the six light years times tangent of 1.6267 times ten to the minus four radians that we figured out up here. And that gives a 345 light years is the smallest separation that we can discern with this radio telescope.
