Two coils are placed close together in a physics lab to demonstrate Faraday’s law of induction. A current of 5.00 A in one is switched off in 1.00 ms, inducing a 9.00 V emf in the other. What is their mutual inductance?
Question by OpenStax is licensed under CC BY 4.0
Final Answer

1.80 mH1.80 \textrm{ mH}

Solution video

OpenStax College Physics for AP® Courses, Chapter 23, Problem 55 (Problems & Exercises)

OpenStax College Physics, Chapter 23, Problem 55 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

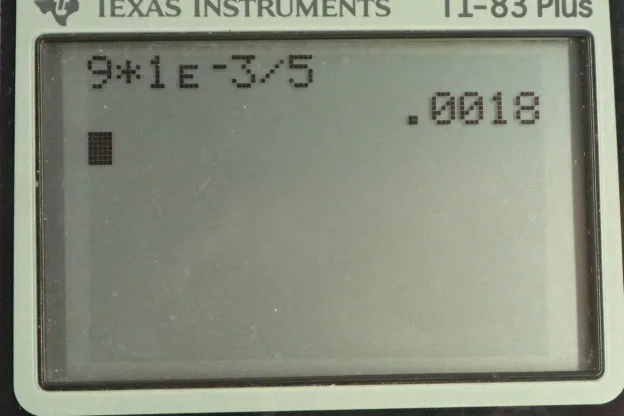

  • OpenStax College Physics, Chapter 23, Problem 55 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. We are going to find the mutual inductance between these two coils by taking the absolute value of induced EMF because we don’t really care about directions here, so we will just take the EMF induced in the second coil equal the mutual inductance times the rate of change of current in the first coil and so we will multiply both sides by delta T over I and then we will solve for M and so the mutual inductance is the induced EMF times the time in which the current changes divided by the amount which current changes. So, its nine volts induced and then that happens in one milli-second and change in current is five amps. Because it gets switched off and so its goes from five amps it goes to zero is what implied by saying “switched off” and this makes 1.80 milli-henry is the mutual inductance.
