Problem1
Section 9.2: The Second Condition for Equilibrium

Question

(a) When opening a door, you push on it perpendicularly with a force of 55.0 N at a distance of 0.850m from the hinges. What torque are you exerting relative to the hinges? (b) Does it matter if you push at the same height as the hinges?

Question by OpenStax is licensed under CC BY 4.0

Final Answer

a) 46.8 N⋅m46.8 \textrm{ N} \cdot \textrm{m}

b) The vertical position of the force doesn't matter. Only the perpendicular distance from the axis of rotation matters, which doesn't change when point of application of the force is moved vertically.

Solution video

4.8 (4)
697 views

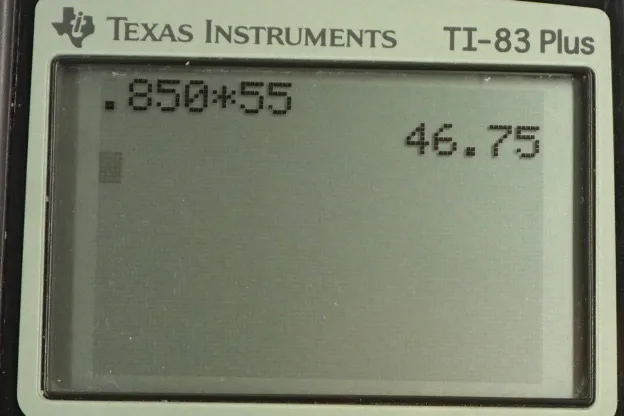

Calculator Screenshots

Calculator screenshot

Comments

anaelle.legrain·
I'm confused about your answer to part b). On page 319 of the textbook it says " If you apply your force too close to the hinges, the door will open slowly, if at all. Most people have been embarrassed by making this mistake and bumping up against a door when it did not open as quickly as expected. Finally, the direction in which you push is also important. "
Like
featherbrain·
Moving closer to the hinge is changing the horizontal distance, the question asked about changing the vertical distance (which it doesn't make a difference).
Like
ShaunDychko·
Thank you very much @featherbrain for responding to this student's question. That's very helpful!
Like
