Question
Some stove tops are smooth ceramic for easy cleaning. If the ceramic is 0.600 cm thick and heat conduction occurs through the same area and at the same rate as computed in Example 14.6, what is the temperature difference across it? Ceramic has the same thermal conductivity as glass and brick. Note: From the example, the circular stove element has a diameter of 14.0 cm, and the rate of heat transfer is 2256 J/s.
Question by OpenStax is licensed under CC BY 4.0.
$1050\textrm{ C}^\circ$
Solution Video

OpenStax College Physics for AP® Courses Solution, Chapter 14, Problem 40 (Problems & Exercises) (1:28)

Sign up to view this solution video!

Rating

1 vote with a rating of 5

Quiz Mode

Why is this button here? Quiz Mode is a chance to try solving the problem first on your own before viewing the solution. One of the following will probably happen:

  1. You get the answer. Congratulations! It feels good! There might still be more to learn, and you might enjoy comparing your problem solving approach to the best practices demonstrated in the solution video.
  2. You don't get the answer. This is OK! In fact it's awesome, despite the difficult feelings you might have about it. When you don't get the answer, your mind is ready for learning. Think about how much you really want the solution! Your mind will gobble it up when it sees it. Attempting the problem is like trying to assemble the pieces of a puzzle. If you don't get the answer, the gaps in the puzzle are questions that are ready and searching to be filled. This is an active process, where your mind is turned on - learning will happen!
If you wish to show the answer immediately without having to click "Reveal Answer", you may . Quiz Mode is disabled by default, but you can check the Enable Quiz Mode checkbox when editing your profile to re-enable it any time you want. College Physics Answers cares a lot about academic integrity. Quiz Mode is encouragement to use the solutions in a way that is most beneficial for your learning.

Calculator Screenshots

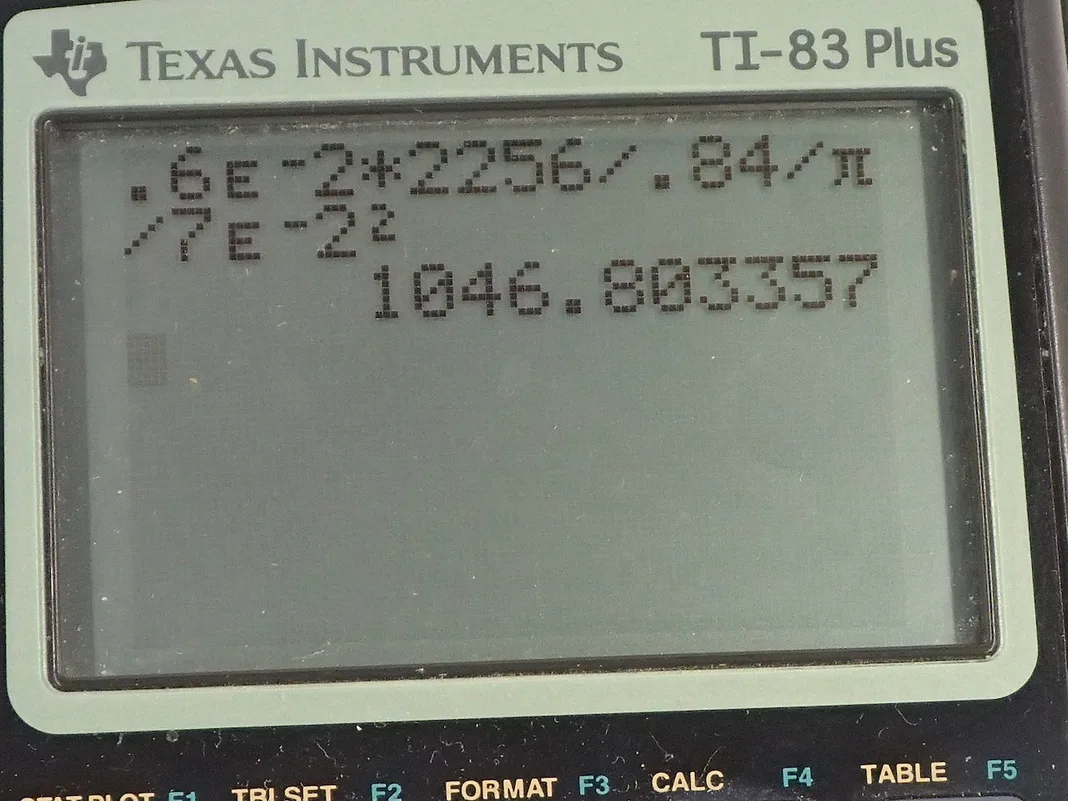

OpenStax College Physics, Chapter 14, Problem 40 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. Example 14.6 tells us that this stove element has a diameter of 14.0 centimeters which we divide by 2 in order to get the radius since we are gonna find its area by using area equals π times radius squared. So the radius is 7.00 centimeters which we convert into meters because the prefix 'centa' means times 10 to the minus 2 and the thickness of the element is 0.600 centimeters which is 0.600 times 10 to the minus 2 meters the rate of heat conduction from the element is 2256 joules per second and its thermal conductivity is 0.84. So we have this formula for the rate of heat conduction equals the thermal conductivity times the area times the temperature difference divided by the thickness of the element and we want to solve for T 2 minus T 1. So we multiply both sides by d and divide both sides by k times A and then this Q over t is just a single thing that we'll put in brackets here and so we have the temperature difference then, after we switch the sides around, is the thickness multiplied by the rate of heat conduction divided by the thermal conductivity times π times the radius squared and we get 1050 Celsius degrees is the temperature difference across the two sides of the element.
