  1. A large electrical power facility produces 1600 MW of “waste heat,” which is dissipated to the environment in cooling towers by warming air flowing through the towers by $5.00 ^\circ\textrm{C}$. What is the necessary flow rate of air in $\textrm{m}^3\textrm{/s}$?
  2. Is your result consistent with the large cooling towers used by many large electrical power plants?
Question by OpenStax is licensed under CC BY 4.0.
  1. $3.4 \times 10^5 \textrm{m}^3\textrm{/s}$
  2. This volume flow rate is unrealistically large. The tower diameter would be 177 m, with fans blowing 50 km/h.
Solution Video

OpenStax College Physics for AP® Courses Solution, Chapter 14, Problem 69 (Problems & Exercises) (4:03)

Sign up to view this solution video!

Rating

No votes have been submitted yet.

Quiz Mode

Why is this button here? Quiz Mode is a chance to try solving the problem first on your own before viewing the solution. One of the following will probably happen:

  1. You get the answer. Congratulations! It feels good! There might still be more to learn, and you might enjoy comparing your problem solving approach to the best practices demonstrated in the solution video.
  2. You don't get the answer. This is OK! In fact it's awesome, despite the difficult feelings you might have about it. When you don't get the answer, your mind is ready for learning. Think about how much you really want the solution! Your mind will gobble it up when it sees it. Attempting the problem is like trying to assemble the pieces of a puzzle. If you don't get the answer, the gaps in the puzzle are questions that are ready and searching to be filled. This is an active process, where your mind is turned on - learning will happen!
If you wish to show the answer immediately without having to click "Reveal Answer", you may . Quiz Mode is disabled by default, but you can check the Enable Quiz Mode checkbox when editing your profile to re-enable it any time you want. College Physics Answers cares a lot about academic integrity. Quiz Mode is encouragement to use the solutions in a way that is most beneficial for your learning.

Calculator Screenshots

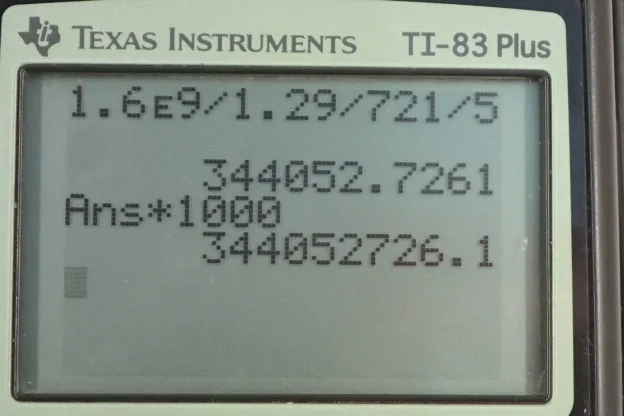

OpenStax College Physics, Chapter 14, Problem 69 (PE) calculator screenshot 1
OpenStax College Physics, Chapter 14, Problem 69 (PE) calculator screenshot 2
Video Transcript
This is College Physics Answers with Shaun Dychko. So a power utility has to dissipate 1600 megawatts of energy in order to keep operating as to 'cool down' the system, maybe this is a nuclear power plant that has these huge cooling towers. So, the air that flows through this tower is going to be raised by 5 Celsius degrees, and we need to figure out what is the volume rate of flow of air through this tower. So that's in cubic meters per second. So the density of air will be important here: 1.29 kilograms per cubic meter. So the rate of power dissipation is the amount of energy per time, and the amount of energy dissipated is absorbed by the air. And so that's going to be the mass of air that flows through, times the specific heat of air, times its change in temperature, divided by time. Now, we don't know what the mass is, but we want to find out what what this power is in terms of volume. And so we substitute V, times the density rho, in place of m. So density is mass divided by volume, and we solve for m by multiplying both sides by V, and we get mass is volume times density. So we substitute that in for m, which I've written in red here. So the power dissipated is: the volume, times density, times specific heat, times change in temperature,over time. Now we can rewrite this as volume over time here, just... I mean that doesn't really change anything we just changed the way it looks because this is the thing we want to solve for: this is the volume rate of flow. This has cubic meters on the top, and then seconds at the bottom. And so we solve for this by dividing both sides by density, times specific heat, times change in temperature. And we have the volume rate of flow is the power dissipated, divided by density, times specific heat, times change in temperature. So it's 1.6 times 10 to the 9 watts, divided by 1.29 kilograms per cubic meter density of air, times 721 Joules per kilogram per Celsius degree specific heat of air, times 5 Celsius degrees, which is 3.4 times 10 to the 5 cubic meters per second of air flow through this cooling tower. Now, to decide, whether this is unrealistic or not, well we can convert it to liters per second, coz that's in a... liters is something we have a better concept of than cubic meters. So multiply this by a thousand liters per cubic meter. So it's 3.4 times 10 to the 8 liters per second. And that's unrealistically large because we can imagine how big the tower would need to be. So the tower has some, suppose it's a circular or cylindrical tower, with a circular cross-section, and its volume rate of flow through it will be: volume is pi, times r squared (that's the area of an end), multiplied by the height, and then divided by time, and this height divided by time is the speed of the air. So I substituted v, in place of h over t. And now, suppose v is 50 kilometers an hour, I mean that's a very high speed, coz fans are gonna be need to be blowing the air through the tower at the speed which converts to 13.89 meters per second. If you solve this for r, it's gonna be the square root of the volume rate of flow, divided by pi times the speed. So that's 3.4 times 10 to the 5 cubic meters per second that we found here, divided by pi, times 13.89 meters per second, which is 88.3 meters. And so, the tower diameter would be twice that, which is 177 meters, with fans blowing air at 50 kilometers per hour. And, well, this is a huge tower, and fans blowing this fast would probably wear out really easily and be expensive to maintain. Plus, they would consume a lot of electricity, you’d probably need a tiny power plant just to power the fans. So, yeah, this is not realistic.
