Question

(a) How much heat transfer is necessary to raise the temperature of a 0.200-kg piece of ice from $-20.0^\circ\textrm{C}$ to $130^\circ\textrm{C}$, including the energy needed for phase changes? (b) How much time is required for each stage, assuming a constant 20.0 kJ/s rate of heat transfer? (c) Make a graph of temperature versus time for this process.

Final Answer

- $6.19 \times 10^5 \textrm{ J}$
- $t_1 = 0.418 \textrm{ s}$

$t_2 = 3.34 \textrm{ s}$

$t_3 = 4.19 \textrm{ s}$

$t_4 = 22.6 \textrm{ s}$

$t_5 = 0.456 \textrm{ s}$

$t_T = 31.0 \textrm{ s}$ - please see the graph in the solution video.

### Solution video

# OpenStax College Physics for AP® Courses, Chapter 14, Problem 17 (Problems & Exercises)

vote with a rating of
votes with an average rating of
.

3
views

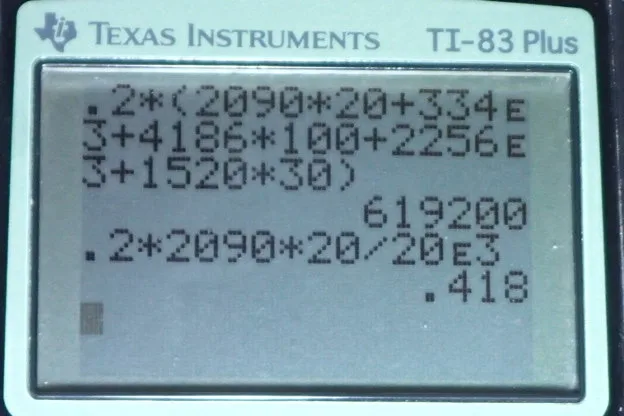

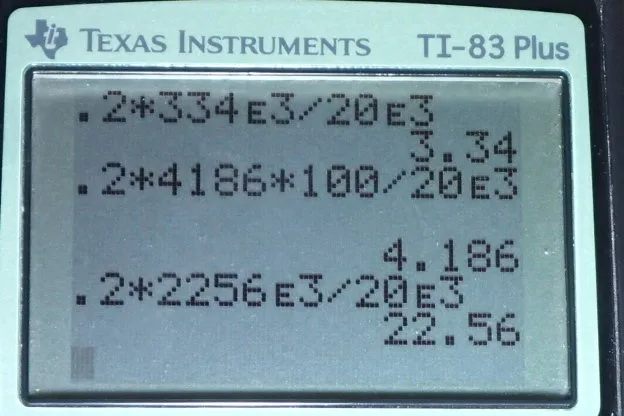

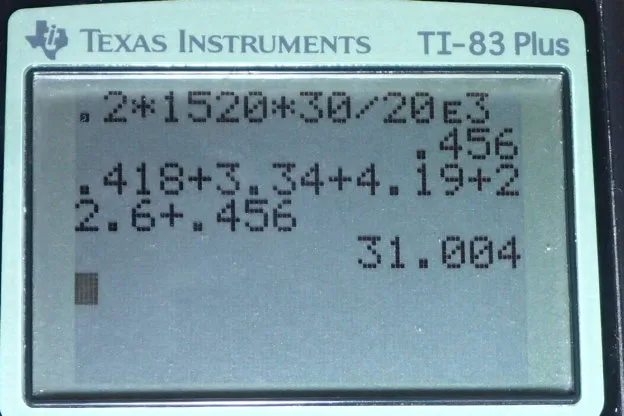

### Calculator Screenshots

Video Transcript

This is College Physics Answers with Shaun Dychko. In this question we are going to raise the temperature of ice which is at negative 20 degree Celsius initially to final temperature of 130 degrees Celsius and which point it will be steamed and the mass is 0.2 kilograms and we have to account for whole bunch of different stages in this process. So, the first amount of energy is the amount of energy required to due to the first change of temperature the first delta
