Problem1
Section 22.4: Magnetic Field Strength: Force on a Moving Charge in a Magnetic Field

Question

What is the direction of the magnetic force on a positive charge that moves as shown in each of the six cases shown in Figure 22.50?

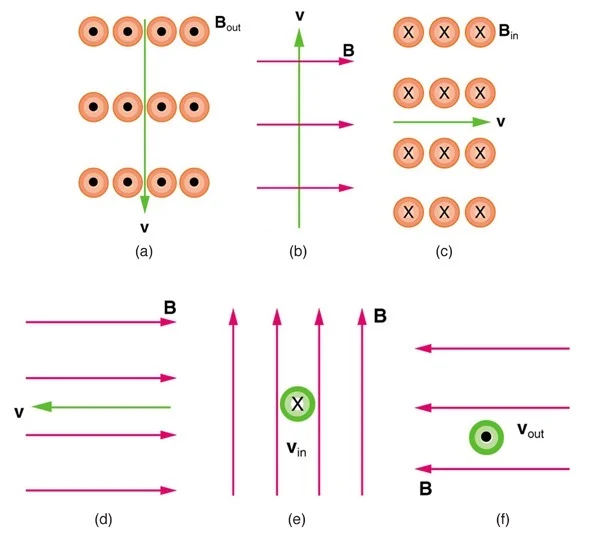

Figure 22.50 A positive charge moving through a magnetic field.
Question by OpenStax is licensed under CC BY 4.0

Final Answer

  1. left
  2. into the page
  3. up
  4. no force
  5. right
  6. down

Solution video

4.7 (7)
568 views

Comments

zulls·
Hi, can you explain the right hand rule for part a, I'm slightly confused with which way the palm and fingers are supposed to be facing
Like
katiechapman·
Love this as a resource! It has honestly helped me so much, but why is there only odds now? I need evens too!
Like
ShaunDychko·
Hi Katie, I'm really glad the videos have been so helpful! Thanks for sharing that. It's helpful motivation for.... the evens! I'm done evens up to chapter 20, with a pace of about 1 chapter of evens every 2 weeks. I did the initial run-through with only odds in order to cover as many topics as quickly as possible so there's a little something for everyone (odds for all chapters) rather than everything for only some (all questions for fewer chapters). All the best, Shaun
Like
JHIBARGER·
Which book are these questions from?
Like
ShaunDychko·
These are from College Physics by OpenStax, available for PDF download free at https://openstax.org/details/books/college-physics
Like
JHIBARGER·
Thank you. Are they applicable if you are using the openstax University Physics volume 2 book? Or is there something similar available specifically for that text book? Cheers!
Like
ShaunDychko·
No, these don't apply to University Physics. This is for an algebraic course. I'd imagine Chegg has solutions for University Physics.
Like
ainarani·
i need solution for quetions 54PE
Like
