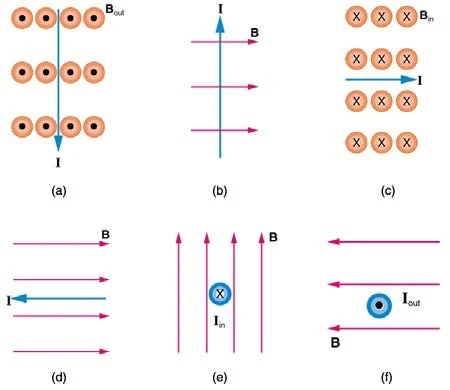

What is the direction of the magnetic force on the current in each of the six cases in Figure 22.59?
<b>Figure 22.59</b> Mangetic field lines and a current.
Figure 22.59 Mangetic field lines and a current.
Question by OpenStax is licensed under CC BY 4.0
Final Answer
  1. left
  2. into the page
  3. up
  4. no force
  5. right
  6. down

Solution video

OpenStax College Physics for AP® Courses, Chapter 22, Problem 31 (Problems & Exercises)
