Question

(a) A 200-turn circular loop of radius 50.0 cm is vertical, with its axis on an east-west line. A current of 100 A circulates clockwise in the loop when viewed from the east. The Earth’s field here is due north, parallel to the ground, with a strength of $3.00\times 10^{-5}\textrm{ T}$ . What are the direction and magnitude of the torque on the loop? (b) Does this device have any practical applications as a motor?

Final Answer

- $0.471\textrm{ N}\cdot\textrm{m}$, clockwise when viewed from above.
- Whether this motor has practical applications depends on how the loop is connected to the source of the current. The curent needs to always be clockwise when viewed from the East, which requires the contacts to switch polarity every half rotation. The question doesn't tell us if this is the case. Without this kind of connection, the loop will oscillate back and forth, which limits its practical applications.

### Solution video

# OpenStax College Physics for AP® Courses, Chapter 22, Problem 48 (Problems & Exercises)

vote with a rating of
votes with an average rating of
.

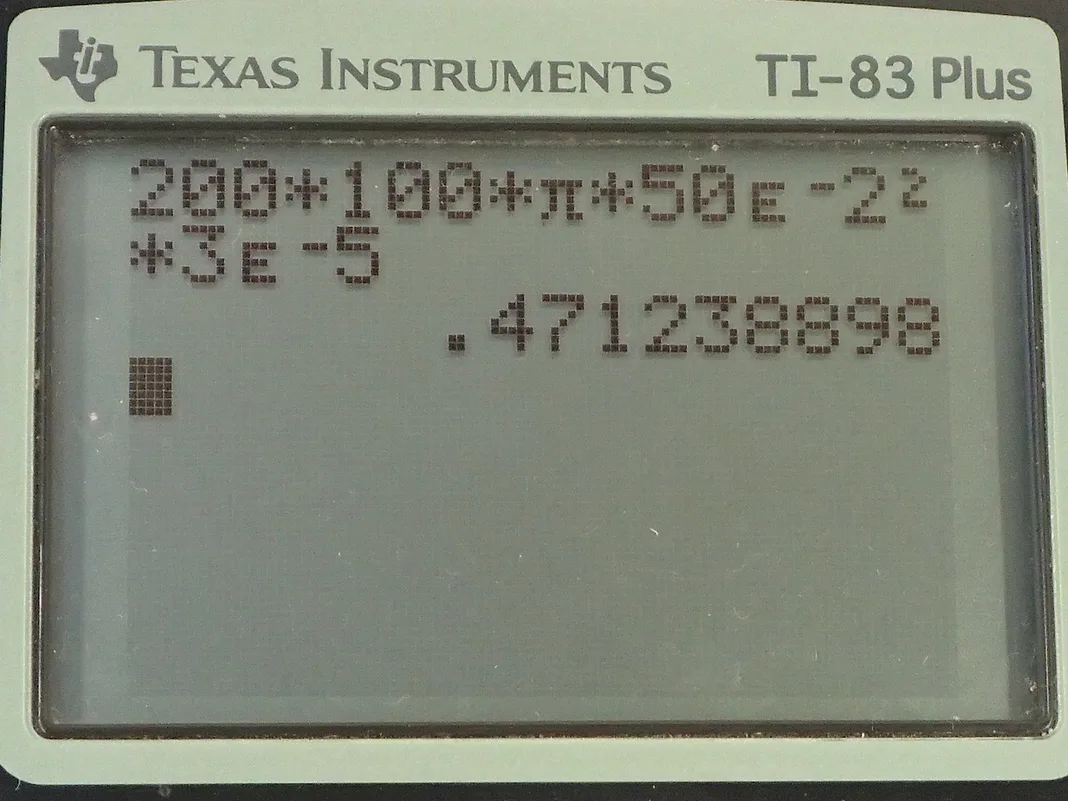

### Calculator Screenshots

Video Transcript

This is College Physics Answers with Shaun Dychko. In this question we really have to draw a picture in order to understand all the directions that are given to us by the question. So we have a loop of wire that's vertical so that means we can draw the ground here and put the loop standing up like this and we are going to look at it from the East because we are told that the direction of current is clockwise when this loop is viewed from the East and that means we have North to the right hand side here and East is coming towards us because we are in the easterly position so we are looking at this from the East and so East is coming towards us and we are looking towards the West— West would be an
