Question
A power transmission line is hung from metal towers with glass insulators having a resistance of 1.00×109Ω1.00 \times 10^9 \Omega What current flows through the insulator if the voltage is 200 kV? (Some high-voltage lines are DC.)
Question by OpenStax is licensed under CC BY 4.0
Final Answer

0.20 mA0.20 \textrm{ mA}

Solution video

OpenStax College Physics, Chapter 20, Problem 23 (Problems & Exercises)

OpenStax College Physics, Chapter 20, Problem 23 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

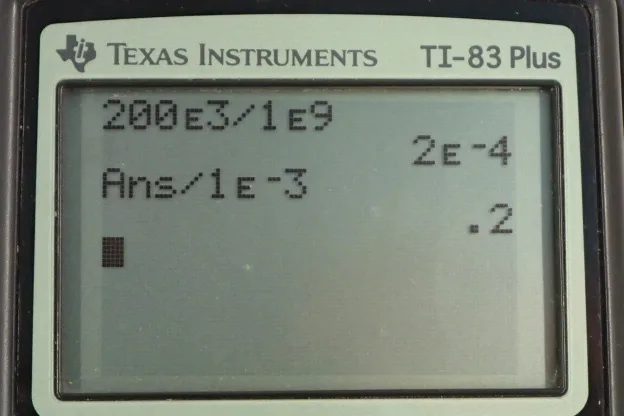

  • OpenStax College Physics, Chapter 20, Problem 23 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. There's going to be a small current that goes through the insulator that supports the wire above the metal tower and the resistance in the insulator is one times ten to the nine ohms. The voltage between the wire and the ground is 200 kilovolts which we convert into volts by multiplying by ten to the three. So we know that V equals I R, that's Ohm's Law, and we'll solve this for current which is I by dividing both sides by R. So I is V over R. So we have 200 times ten to the three volts divided by one times ten to the nine ohms which gives 2.0 times ten to the minus four amps. It's just a little nicer to write this in milliamps, so we multiply by one milliamp for every ten to the minus three amps and the amps cancel leaving us with milliamps. This is 0.20 milliamps.
