Question
The diameter of 0-gauge copper wire is 8.252 mm. Find the resistance of a 1.00-km length of such wire used for power transmission.
Question by OpenStax is licensed under CC BY 4.0
Final Answer

0.322Ω0.322 \Omega

Solution video

OpenStax College Physics, Chapter 20, Problem 25 (Problems & Exercises)

OpenStax College Physics, Chapter 20, Problem 25 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

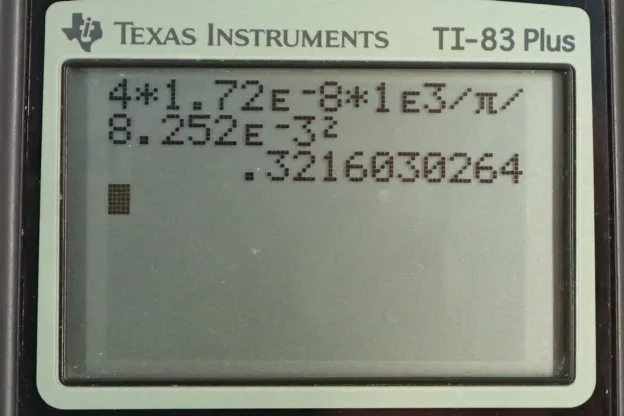

  • OpenStax College Physics, Chapter 20, Problem 25 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. It's important to begin a question by writing down all the stuff that we're given and also take care of unit conversions in this step when you're just writing things down so that you don't have to think about it during your algebra and the work that follows. So the diameter of our zero gauge copper wire is 8.252 millimeters which we convert into meters by multiplying by ten to the minus three. The length is one kilometer which is one times ten to the three meters. Since we're told this is copper, its resistivity if we look it up in the table given to us in the textbook, is 1.72 times ten to the minus eight ohm meters. So the resistance of the wire is resistivity multiplied by its length divided by its cross-sectional area. The cross-sectional area will be pi times d squared over four, and then if you multiply top and bottom by four you get rid of the four that's nested within this fraction which looks kind of ugly, so we'll put the four in the numerator. So we have four rho l over i d squared. So that's four times 1.72 times ten to the minus eight ohm meters, times one times ten to the three meters divided by pi times 8.252 times ten to the minus three meters squared, giving us 0.322 ohms of resistance.

Comments

link

why does cross sectional area in this example equal PI* d^2 over 4 and not 2PIr
where does the squared over 4 part come from?

Hi parm, I think what you mean is why πd24\dfrac{\pi d^2}{4} vs πr2\pi r^2, right? They're both correct. The question gives us diameter, and we know that radius is half the diameter. In formula terms, where diameter is dd and radius is rr, then r=d2r = \dfrac{d}{2}. Substituting for rr in πr2\pi r^2 gives πd24\dfrac{\pi d^2}{4} where the 44 is the result of squaring the denominator of d2\dfrac{d}{2}.

All the best,
Shaun
