Question
(a) A defibrillator sends a 6.00-A current through the chest of a patient by applying a 10,000-V potential as in the figure below. What is the resistance of the path? (b) The defibrillator paddles make contact with the patient through a conducting gel that greatly reduces the path resistance. Discuss the difficulties that would ensue if a larger voltage were used to produce the same current through the patient, but with the path having perhaps 50 times the resistance. (Hint: The current must be about the same, so a higher voltage would imply greater power. Use this equation for power: P=I2RP=I^2R)

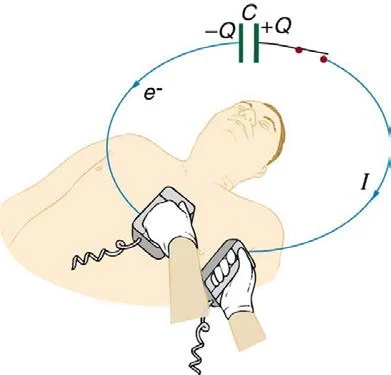

<b>Figure 20.41</b> The capacitor in a defibrillation unit drives a current through the heart of a patient.
Figure 20.41 The capacitor in a defibrillation unit drives a current through the heart of a patient.
Question by OpenStax is licensed under CC BY 4.0
Final Answer

a) 1.67 kΩ1.67 \textrm{ k}\Omega

b) The patient would get burned by the increased power.

Solution video

OpenStax College Physics, Chapter 20, Problem 7 (Problems & Exercises)

OpenStax College Physics, Chapter 20, Problem 7 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

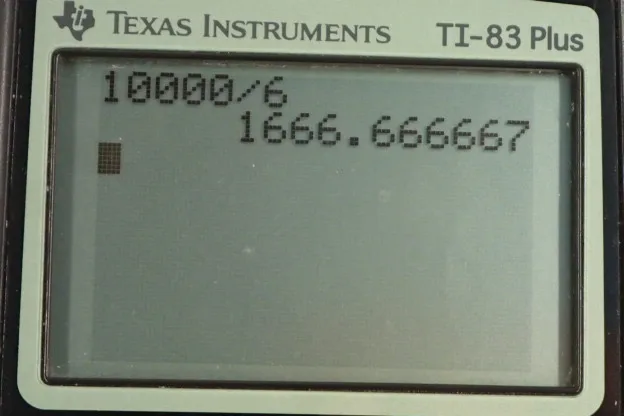

  • OpenStax College Physics, Chapter 20, Problem 7 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. Ohm's Law says that voltage equals current times resistance and we can solve for R by dividing both sides by the current and then switching the sides around. So the resistance of the person's chest is the voltage divided by the current. That's 10,000 volts divided by 6 amps which is 1.67 kilo-ohms. Now, we're asked what would happen if the conducting gel was not used and so there was a compensatingly higher voltage to get past that higher resistance in order to give the same current because it's apparently the current that is important for jump-starting the heart. So we have two power outputs to consider. In the first case we have the conducting gel in which case there is a resistance of R one. This current does not get a subscript one because we're told that the current in these two cases is meant to be the same. So in scenario two, the power output will be the same current squared but multiplied by a different resistance R two. We're told that R two is about 50 times R one. So the current without the conducting gel is about 50 times greater than the current that does has conducting gel. So we'll substitute 50 R one in place of R two in our formula for P two. That makes 50 times I squared R one. I squared R one is P oneand so we can say that P two is 50 times P one. In this case, this power is going to result in the patient getting burned because power is the amount of energy that's output per second. You know watts is joules per second and watts is the units of power. This energy is going to go in the patient's skin and burn it. So that's why you want a conducting gel.
