Question
How large an expansion gap should be left between steel railroad rails if they may reach a maximum temperature 35.0C35.0\textrm{C}^\circ greater than when they were laid? Their original length is 10.0 m.
Question by OpenStax is licensed under CC BY 4.0
Final Answer

4.2 mm4.2\textrm{ mm}

Solution video

OpenStax College Physics, Chapter 13, Problem 12 (Problems & Exercises)

OpenStax College Physics, Chapter 13, Problem 12 (PE) video thumbnail

In order to watch this solution you need to have a subscription.

Start free trial Log in
vote with a rating of votes with an average rating of .

Calculator Screenshots

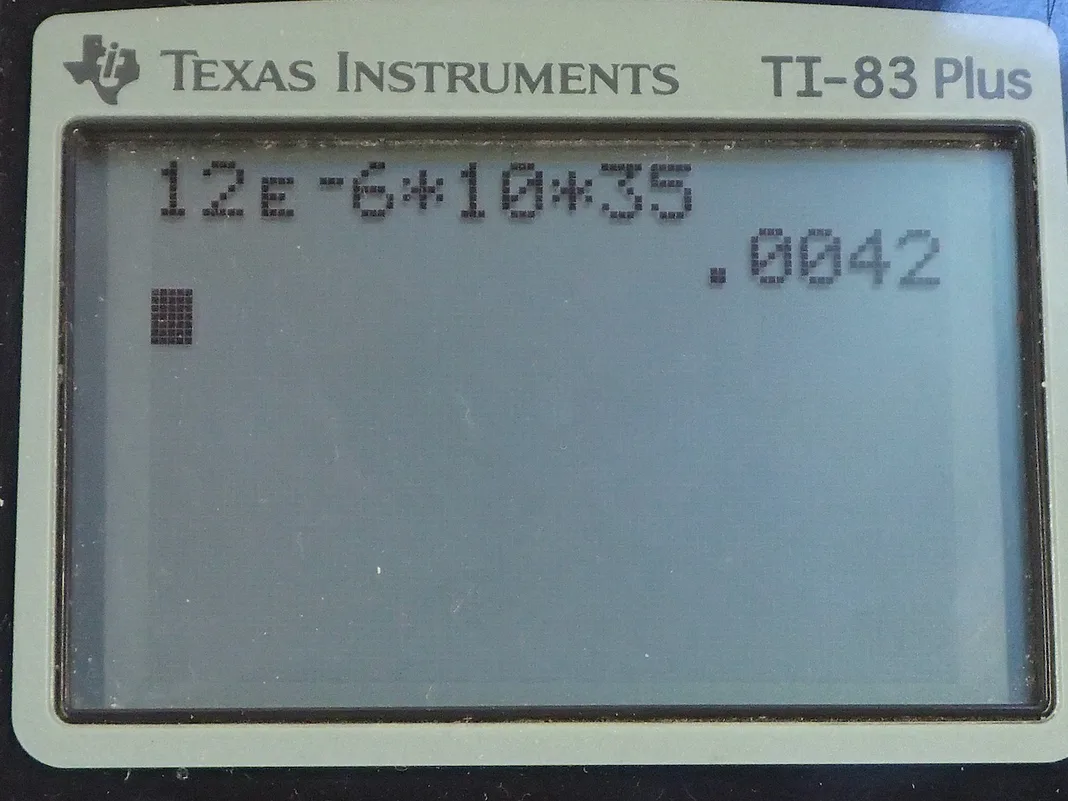

  • OpenStax College Physics, Chapter 13, Problem 12 (PE) calculator screenshot 1
Video Transcript
This is College Physics Answers with Shaun Dychko. Some steel railroad rails are initially 10 meters long when they are laid down on the track. And then we suppose that the temperature increases by 35 Celsius degrees compared to when they were originally put down. How much of a gap should be left between adjacent rail segments so that the gap has to be the amount of expansion of the rail due to this temperature increase? So, this change in length will be the coefficient of linear expansion of steel which is 12 times 10 to the 6 per Celsius degree. So for steel we have it here as 12 to the minus 6 in table 13.2. And we multiply that coefficient of linear expansion by the original length and then by the change in temperature. So that's 12 times 10 to the minus 6 Celsius degree times 10 meters times 35 Celsius degrees. And that is 4.2 millimeters.
