Chapter 20: Electric Current, Resistance, and Ohm's Law

20.1 Current

•
  0:48

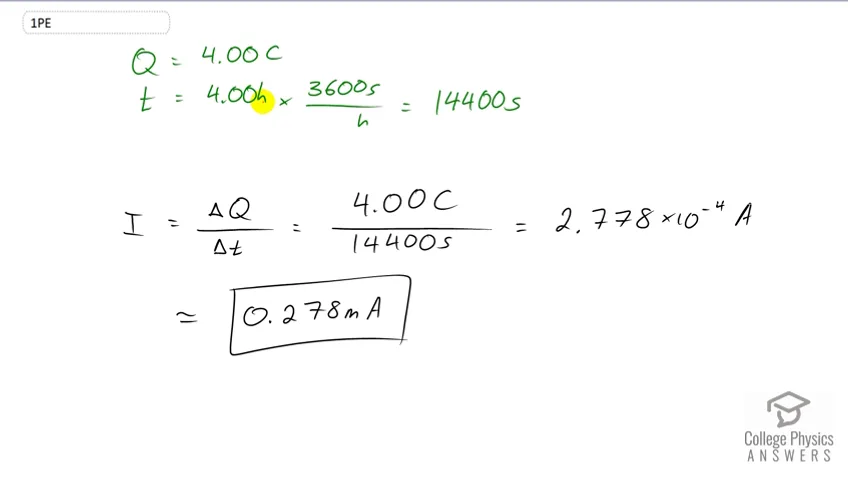

  Problem 1Free preview

  What is the current in milliamperes produced by the solar cells of a pocket calculator through which 4.00 C of charge passes in 4.00 h?
•
  0:31
  Problem 2

  A total of 600 C of charge passes through a flashlight in 0.500 h. What is the average current?
•
  0:44
  Problem 3

  What is the current when a typical static charge of $0.250\mu \text{C}$ moves from your finger to a metal doorknob in $1.00\mu \text{s}$?
•
  0:41
  Problem 4

  Find the current when 2.00 nC jumps between your comb and hair over a $0.500\mu \text{s}$ time interval.
•
  0:38
  Problem 5

  A large lightning bolt had a 20,000-A current and moved 30.0 C of charge. What was its duration?
•
  0:44
  Problem 6

  The 200-A current through a spark plug moves 0.300 mC of charge. How long does the spark last?
•
  1:57

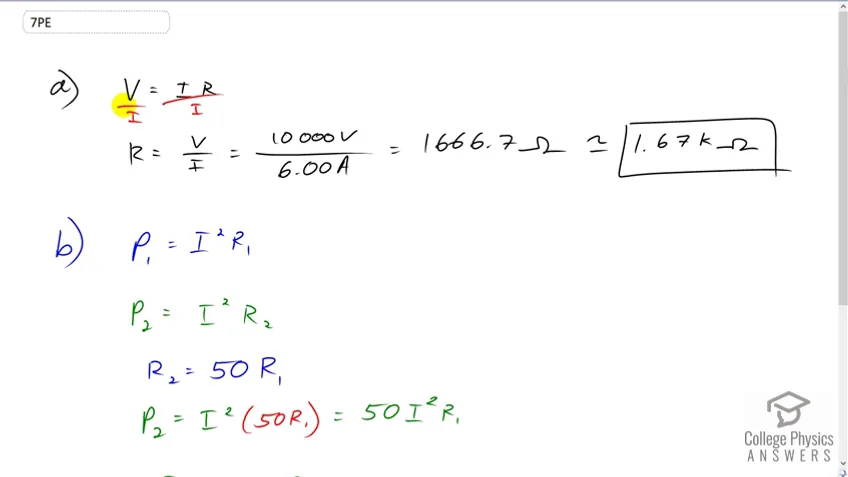

  Problem 7

  (a) A defibrillator sends a 6.00-A current through the chest of a patient by applying a 10,000-V potential as in the figure below. What is the resistance of the path? (b) The defibrillator paddles make contact with the patient through a conducting gel that greatly reduces the path resistance. Discuss the difficulties that would ensue if a larger voltage were used to produce the same current through the patient, but with the path having perhaps 50 times the resistance. (Hint: The current must be about the same, so a higher voltage would imply greater power. Use this equation for power: $P=I^{2}R$)
•
  0:31
  Problem 8

  During open-heart surgery, a defibrillator can be used to bring a patient out of cardiac arrest. The resistance of the path is $500\Omega$ and a 10.0 mA current is needed. What voltage should be applied?
•
  0:52

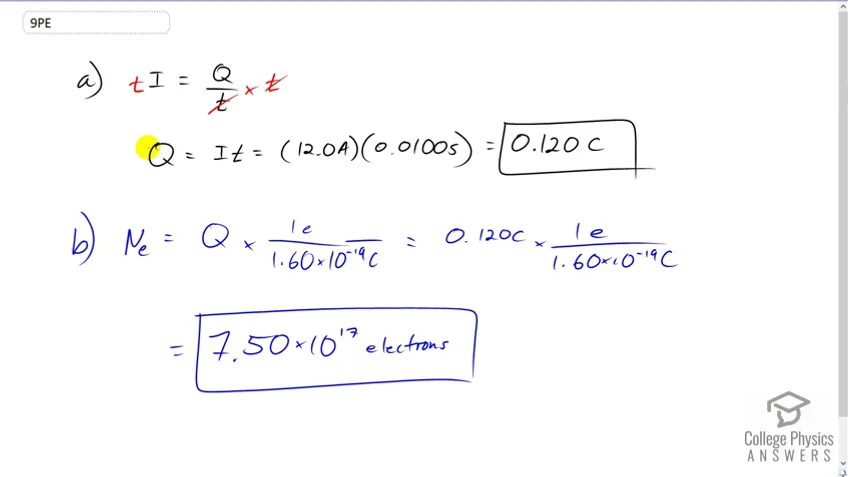

  Problem 9

  (a) A defibrillator passes 12.0 A of current through the torso of a person for 0.0100 s. How much charge moves? (b) How many electrons pass through the wires connected to the patient? (See figure below.)
•
  1:20

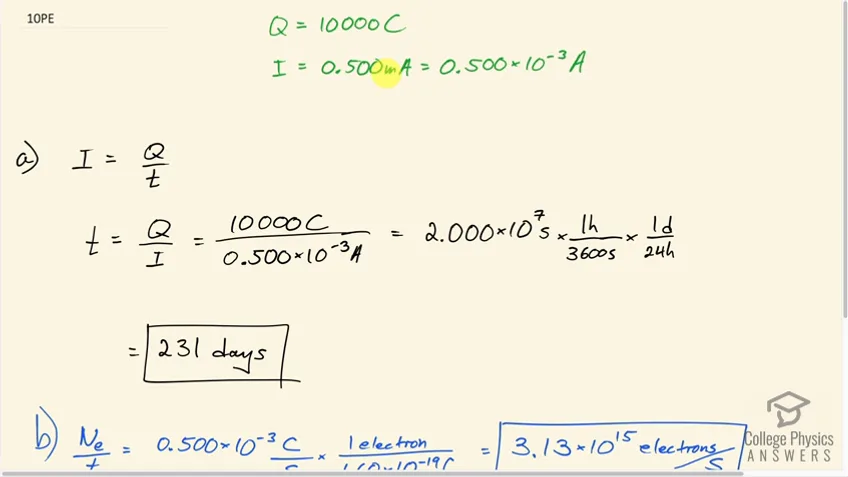

  Problem 10

  A clock battery wears out after moving 10,000 C of charge through the clock at a rate of 0.500 mA. (a) How long did the clock run? (b) How many electrons per second flowed?
•
  1:20
  Problem 11

  The batteries of a submerged non-nuclear submarine supply 1000 A at full speed ahead. How long does it take to move Avogadro's number ( $6.02\times 10^{23}$ ) of electrons at this rate?
•
  1:11

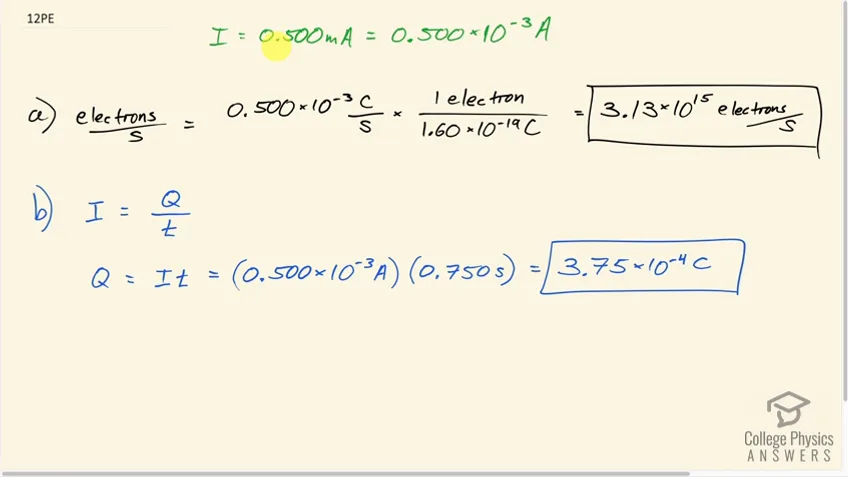

  Problem 12

  Electron guns are used in X-ray tubes. The electrons are accelerated through a relatively large voltage and directed onto a metal target, producing X-rays. (a) How many electrons per second strike the target if the current is 0.500 mA? (b) What charge strikes the target in 0.750 s?
•
  2:36

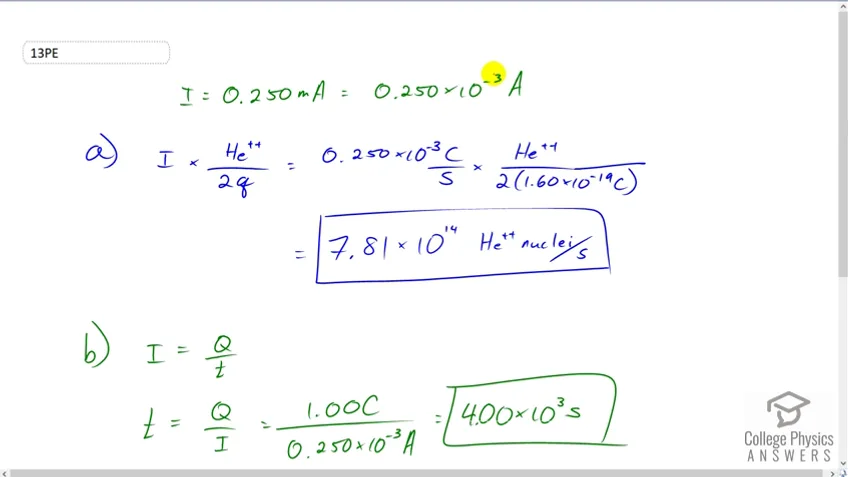

  Problem 13

  A large cyclotron directs a beam of ${\text{He}}^{++}$ nuclei onto a target with a beam current of 0.250 mA. (a) How many ${\text{He}}^{++}$ nuclei per second is this? (b) How long does it take for 1.00 C to strike the target? (c) How long before 1.00 mol of ${\text{He}}^{++}$ nuclei strike the target?
•
  3:37

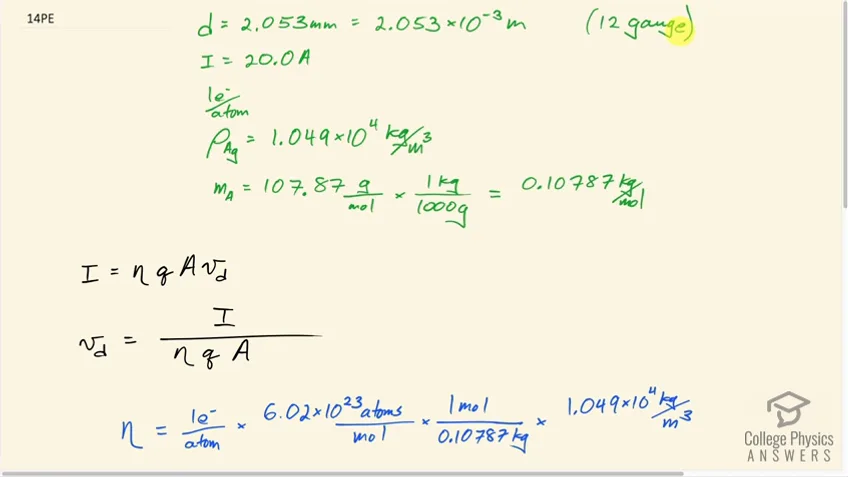

  Problem 14

  Repeat Example 20.3, but for a wire made of silver and given there is one free electron per silver atom.
  Example 20.3 Calculate the drift velocity of electrons in a 12-gauge copper wire (which has a diameter of 2.053 mm) carrying a 20.0-A current, given that there is one free electron per copper atom. (Household wiring often contains 12-gauge copper wire, and the maximum current allowed in such wire is usually 20 A.)
•
  3:22

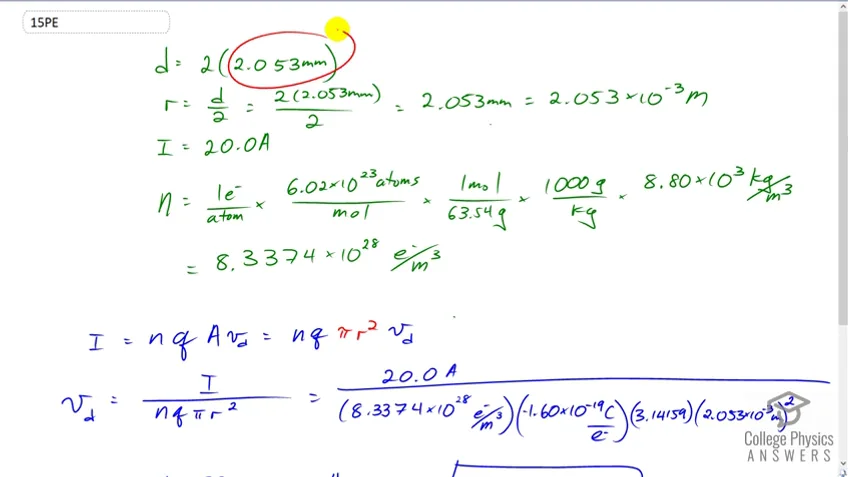

  Problem 15

  Using the results of Example 20.3, find the drift velocity in a copper wire of twice the diameter and carrying 20.0 A.
  Example 20.3: Calculate the drift velocity of electrons in a 12-gauge copper wire (which has a diameter of 2.053 mm) carrying a 20.0-A current, given that there is one free electron per copper atom. (Household wiring often contains 12-gauge copper wire, and the maximum current allowed in such wire is usually 20 A.) The density of copper is $8.80\times 10^3{\text{ kg/m}}^3$ .
•
  1:42

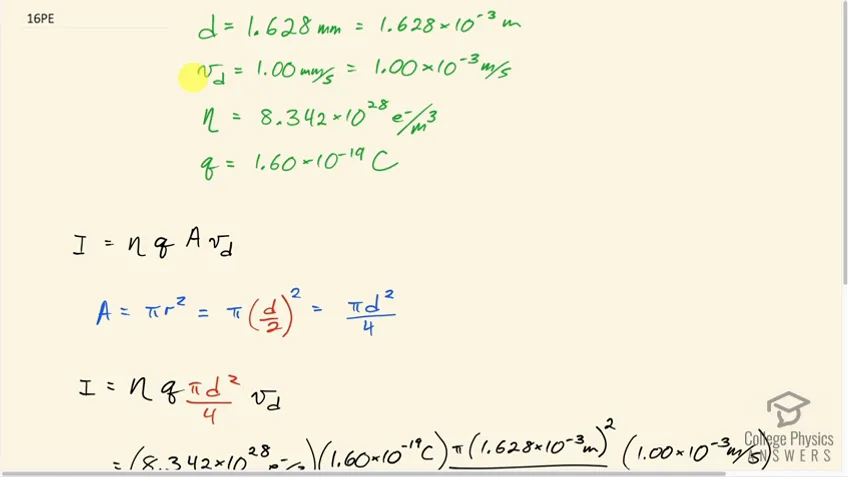

  Problem 16

  A 14-gauge copper wire has a diameter of 1.628 mm. What magnitude current flows when the drift velocity is 1.00 mm/s? (See Example 20.3 for useful information.)
•
  1:55

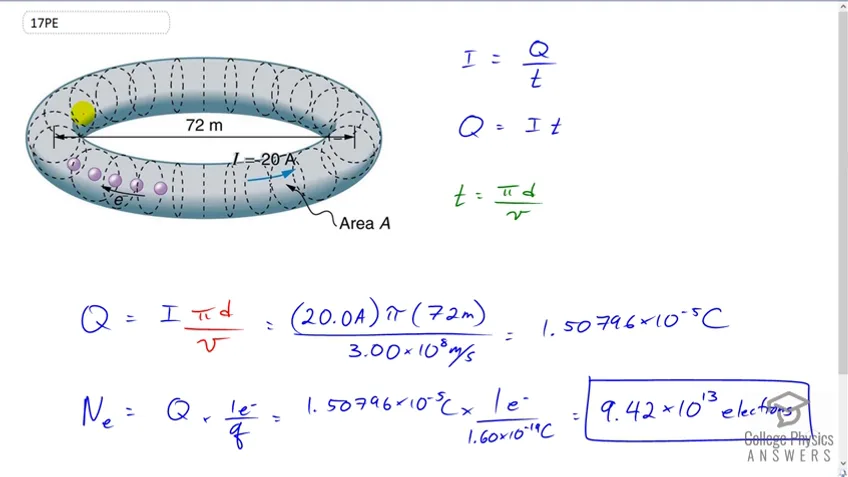

  Problem 17

  SPEAR, a storage ring about 72.0 m in diameter at the Stanford Linear Accelerator (closed in 2009), has a 20.0-A circulating beam of electrons that are moving at nearly the speed of light. (See Figure 20.39.) How many electrons are in the beam?

20.2 Ohm's Law: Resistance and Simple Circuits

•
  0:27
  Problem 18

  What current flows through the bulb of a 3.00-V flashlight when its hot resistance is $3.60\text{Omega}$?
•
  0:21
  Problem 19

  Calculate the effective resistance of a pocket calculator that has a 1.35-V battery and through which 0.200 mA flows.
•
  0:31
  Problem 20

  What is the effective resistance of a car’s starter motor when 150 A flows through it as the car battery applies 11.0 V to the motor?
•
  0:31
  Problem 21

  How many volts are supplied to operate an indicator light on a DVD player that has a resistance of $140\Omega$ , given that 25.0 mA passes through it?
•
  1:58

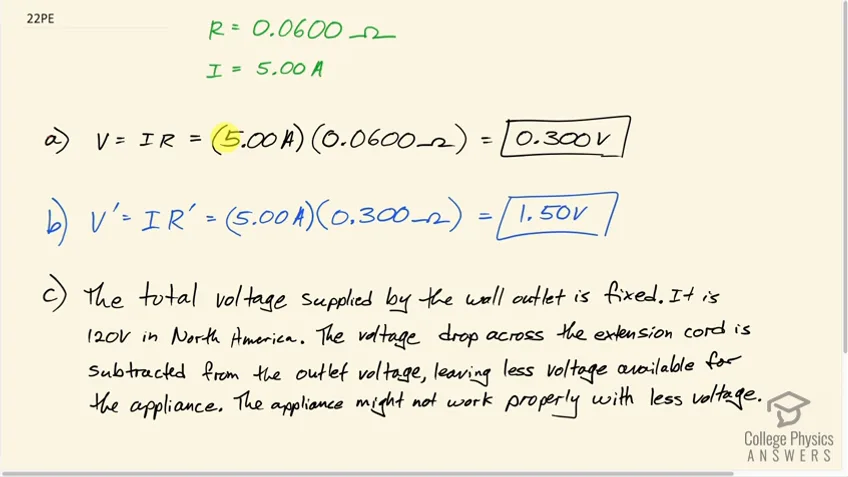

  Problem 22

  (a) Find the voltage drop in an extension cord having a $0.0600\Omega$ resistance and through which 5.00 A is flowing. (b) A cheaper cord utilizes thinner wire and has a resistance of $0.300\Omega$. What is the voltage drop in it when 5.00 A flows? (c) Why is the voltage to whatever appliance is being used reduced by this amount? What is the effect on the appliance?
•
  0:55

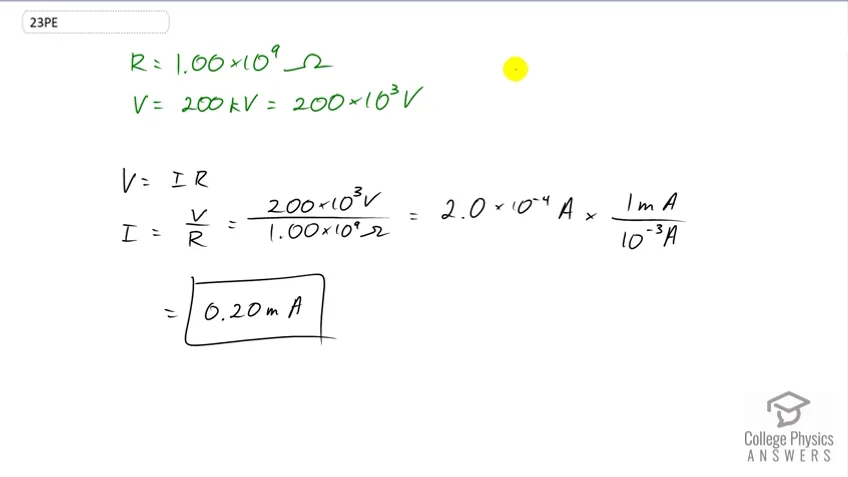

  Problem 23

  A power transmission line is hung from metal towers with glass insulators having a resistance of $1.00\times 10^9\Omega$ What current flows through the insulator if the voltage is 200 kV? (Some high-voltage lines are DC.)

20.3 Resistance and Resistivity

•
  1:46

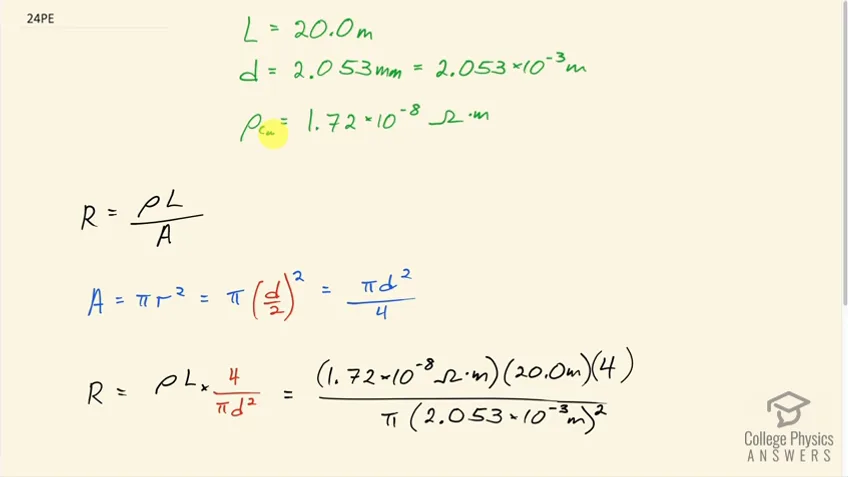

  Problem 24

  What is the resistance of a 20.0-m-long piece of 12-gauge copper wire having a 2.053-mm diameter?
•
  1:19

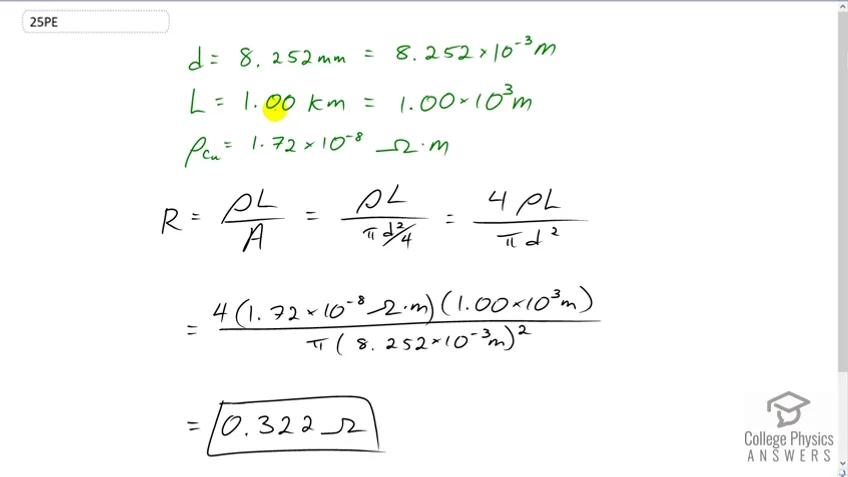

  Problem 25

  The diameter of 0-gauge copper wire is 8.252 mm. Find the resistance of a 1.00-km length of such wire used for power transmission.
•
  2:13
  Problem 26

  If the 0.100-mm diameter tungsten filament in a light bulb is to have a resistance of $0.200\Omega$ at $20.0^{\circ }\text{C}$ , how long should it be?
•
  3:01
  Problem 27

  Find the ratio of the diameter of aluminum to copper wire, if they have the same resistance per unit length (as they might in household wiring).
•
  2:42

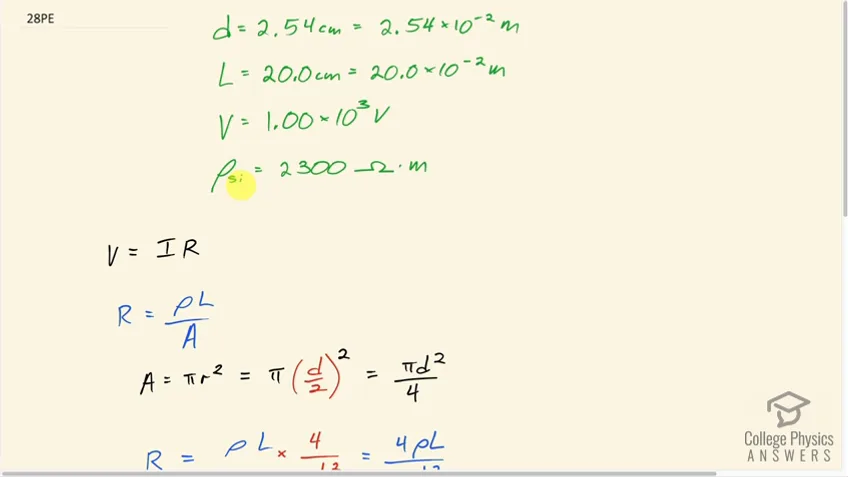

  Problem 28

  What current flows through a 2.54-cm-diameter rod of pure silicon that is 20.0 cm long, when $1.00\times 10^3\text{ V}$ is applied to it? (Such a rod may be used to make nuclear- particle detectors, for example.)
•
  2:32
  Problem 29

  (a) To what temperature must you raise a copper wire, originally at $20.0^{\circ }\text{C}$ , to double its resistance, neglecting any changes in dimensions? (b) Does this happen in household wiring under ordinary circumstances?
•
  3:39
  Problem 30

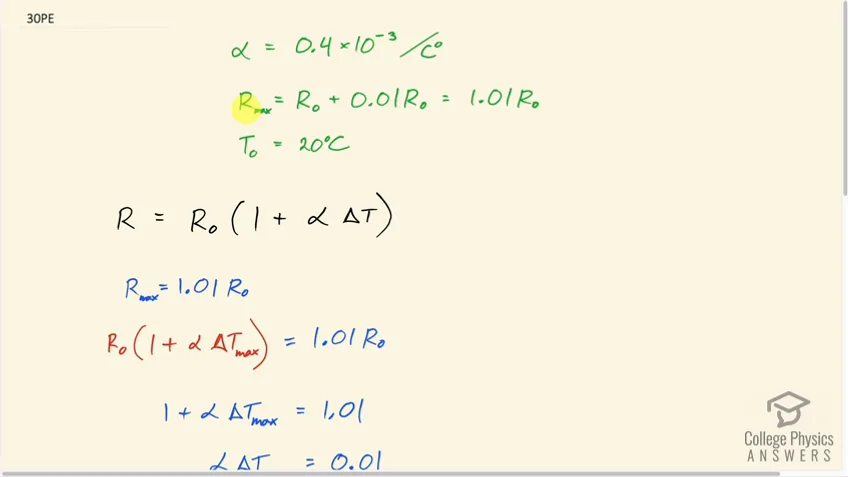

  A resistor made of Nichrome wire is used in an application where its resistance cannot change more than 1.00% from its value at $20.0^{\circ }\text{C}$ . Over what temperature range can it be used?
•
  1:38

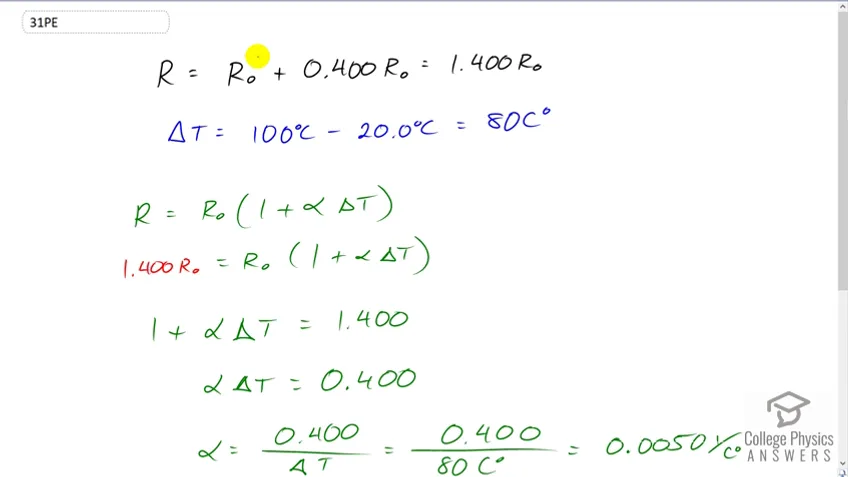

  Problem 31

  Of what material is a resistor made if its resistance is 40.0% greater at $100^{\circ }\text{C}$ than at $20.0^{\circ }\text{C}$ ?
•
  3:08

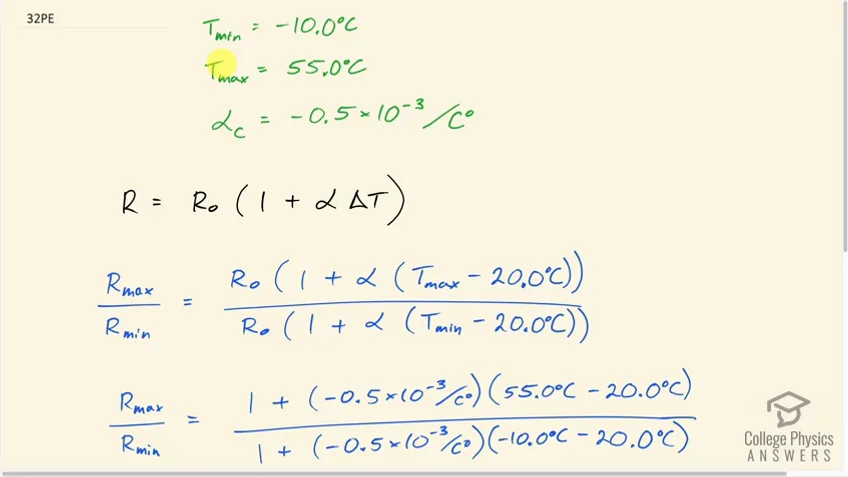

  Problem 32

  An electronic device designed to operate at any temperature in the range from $-10.0^{\circ }\text{C}$ to $55.0^{\circ }\text{C}$ contains pure carbon resistors. By what factor does their resistance increase over this range?
•
  2:20

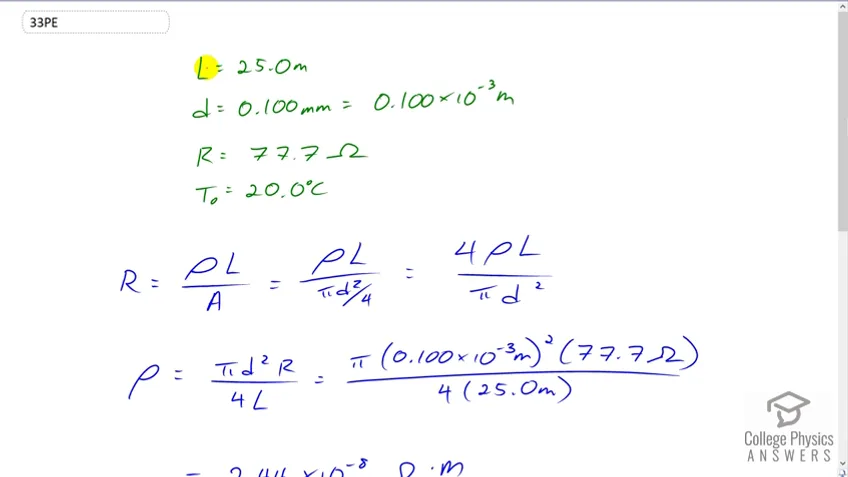

  Problem 33

  (a) Of what material is a wire made, if it is 25.0 m long with a 0.100 mm diameter and has a resistance of $77.7\Omega$ at $20.0^{\circ }\text{C}$ ? (b) What is its resistance at $150^{\circ }\text{C}$?
•
  2:57

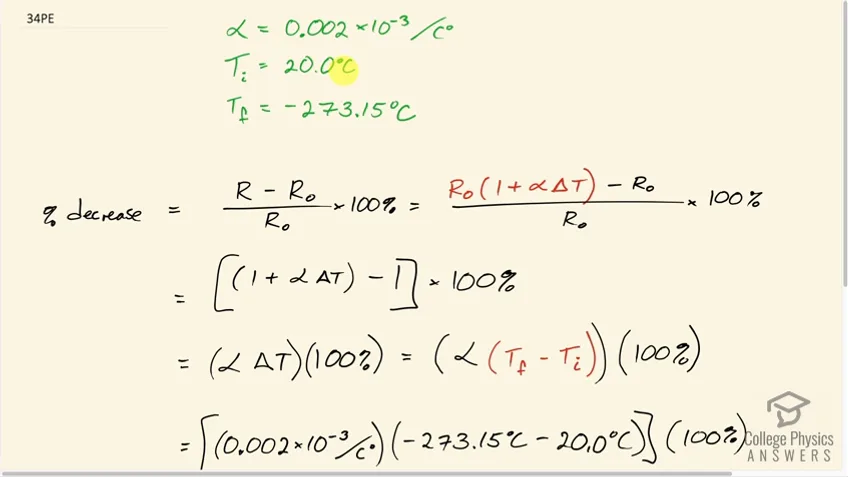

  Problem 34

  Assuming a constant temperature coefficient of resistivity, what is the maximum percent decrease in the resistance of a constantan wire starting at $20.0^{\circ }\text{C}$?
•
  3:31
  Problem 35

  A wire is drawn through a die, stretching it to four times its original length. By what factor does its resistance increase?
•
  3:22

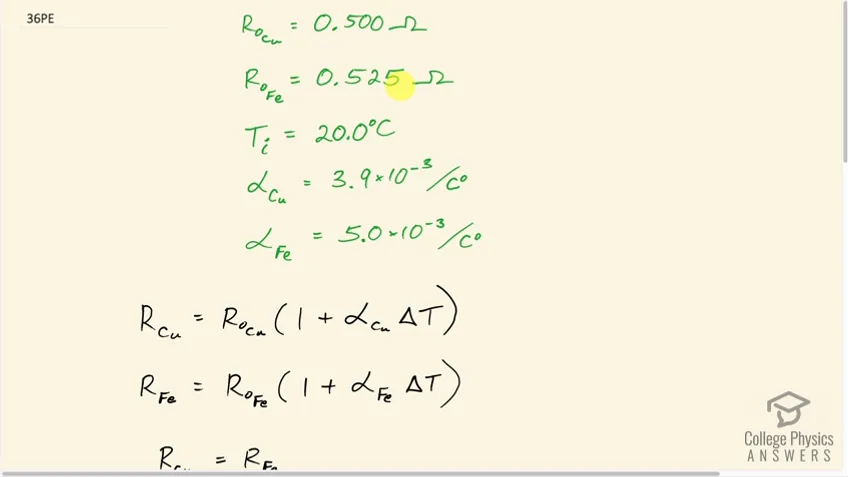

  Problem 36

  A copper wire has a resistance of $0.500\Omega$ at $20.0^{\circ }\text{C}$ , and an iron wire has a resistance of $0.525\Omega$ at the same temperature. At what temperature are their resistances equal?
•
  4:01

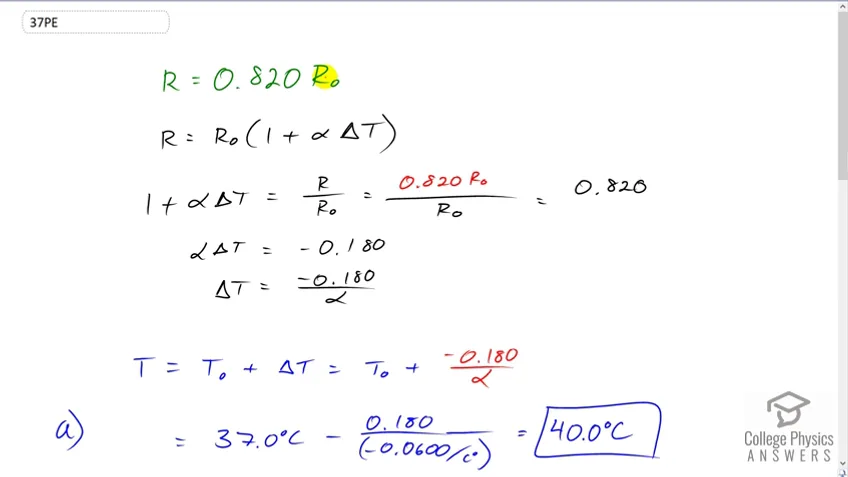

  Problem 37

  (a) Digital medical thermometers determine temperature by measuring the resistance of a semiconductor device called a thermistor (which has $\alpha =-0.0600\text{/}{C}^{\circ }$ ) when it is at the same temperature as the patient. What is a patient's temperature if the thermistor's resistance at that temperature is 82.0% of its value at $37.0^{\circ }\text{C}$ (normal body temperature)? (b) The negative value for $\alpha$ may not be maintained for very low temperatures. Discuss why and whether this is the case here. (Hint: Resistance can't become negative.)
•
  6:42

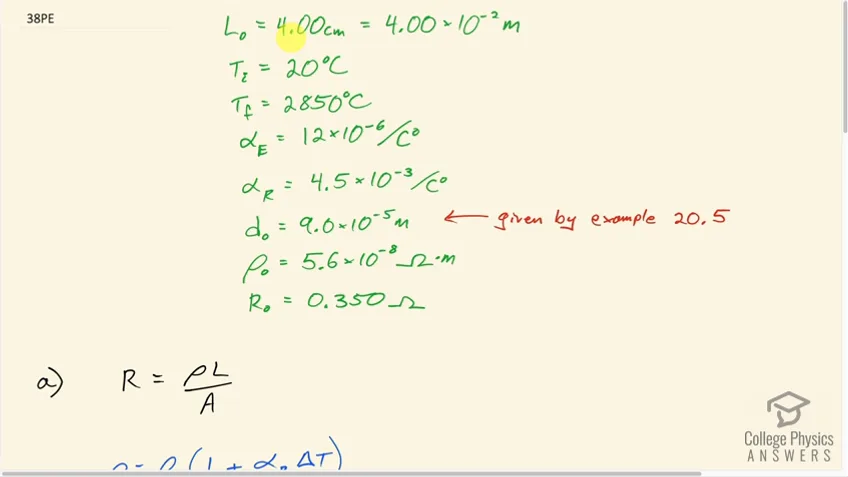

  Problem 38

  (a) Redo Example 20.6 taking into account the thermal expansion of the tungsten filament. You may assume a thermal expansion coefficient of $12\times 10^{-6}{\text{ /C}}^{\circ }$. (b) By what percentage does your answer differ from that in the example?
  Example 20.6: Although caution must be used in applying $\rho ={\rho }_o(1+\alpha \Delta T)$ and $R=R_o(1+\alpha \Delta T)$ for temperature changes greater than $100^{\circ }\text{C}$ , for tungsten the equations work reasonably well for very large temperature changes. What, then, is the resistance of the tungsten filament in the previous example if its temperature is increased from room temperature ( $20^{\circ }\text{C}$ ) to a typical operating temperature of $2850^{\circ }\text{C}$ ?
  Example 20.5: A car headlight filament is made of tungsten and has a cold resistance of $0.350\Omega$ . If the filament is a cylinder 4.00 cm long (it may be coiled to save space), what is its diameter? Solution: $D=9.0\times 10^{-5}\text{ m}$
•
  2:45
  Problem 39

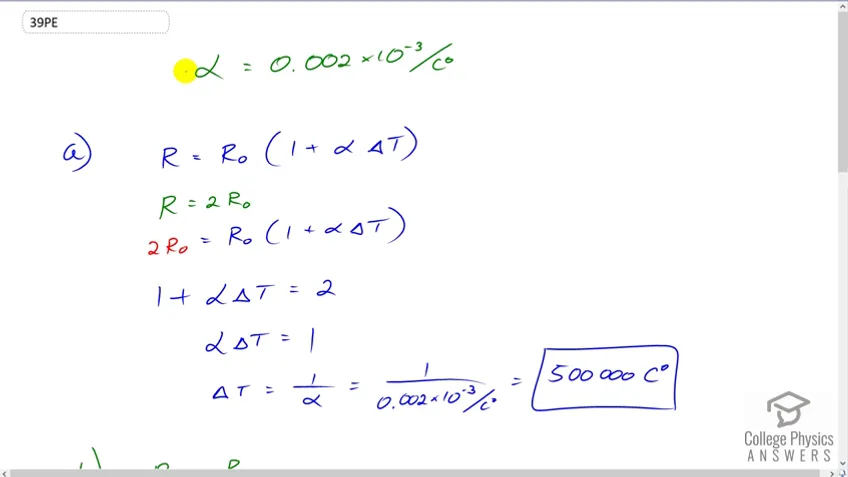

  (a) To what temperature must you raise a resistor made of constantan to double its resistance, assuming a constant temperature coefficient of resistivity? (b) To cut it in half? (c) What is unreasonable about these results? (d) Which assumptions are unreasonable, or which premises are inconsistent?

20.4 Electric Power and Energy

•
  0:29

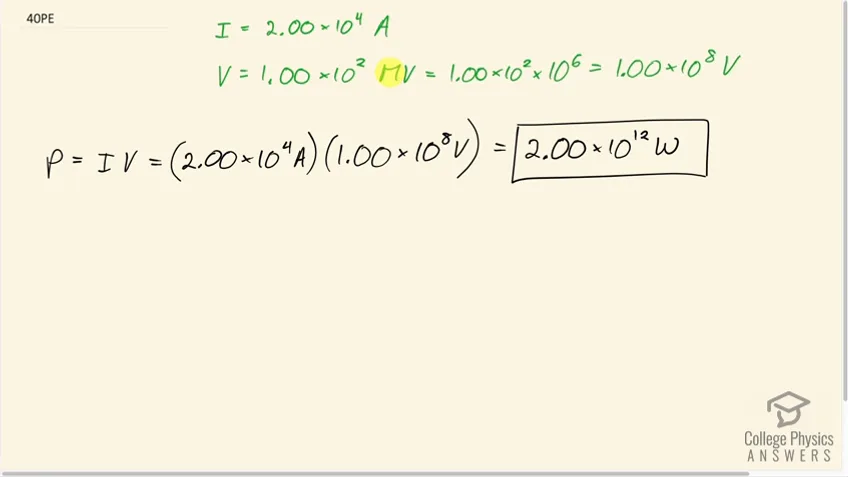

  Problem 40

  What is the power of a $1.00\times 10^2\text{ MV}$ lightening bolt having a current of $2.00\times 10^4\text{ A}$
•
  0:16
  Problem 41

  What power is supplied to the starter motor of a large truck that draws 250 A of current from a 24.0-V battery hookup?
•
  1:06

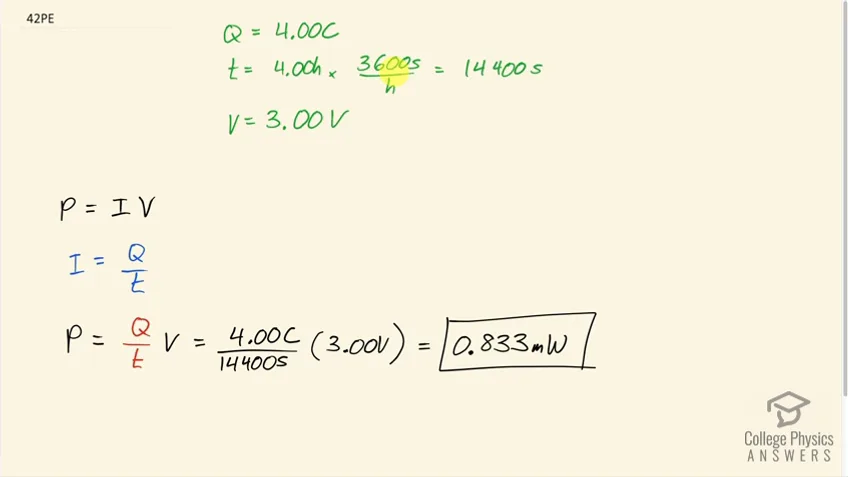

  Problem 42

  A charge of 4.00 C of charge passes through a pocket calculator’s solar cells in 4.00 h. What is the power output, given the calculator’s voltage output is 3.00 V? (See Figure 20.40.)
•
  0:33
  Problem 43

  How many watts does a flashlight that has $6.00\times 10^2\text{ C}$ pass through it in 0.500 h use if its voltage is 3.00 V?
•
  0:54

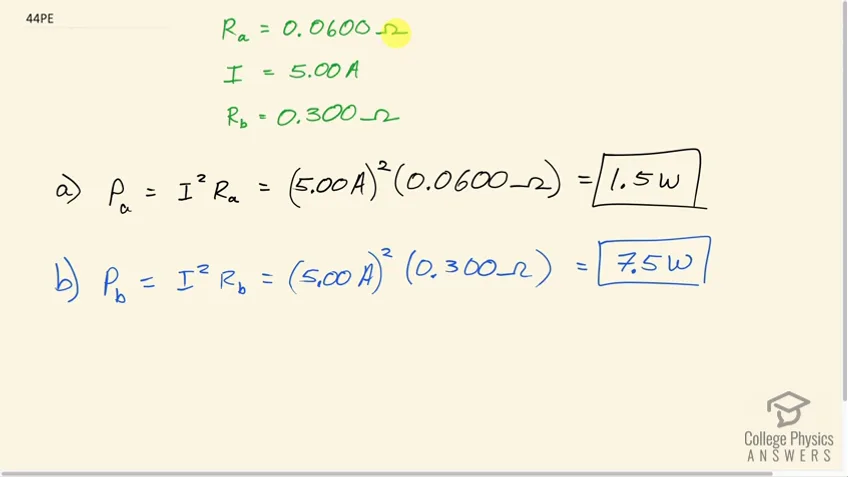

  Problem 44

  Find the power dissipated in each of these extension cords: (a) an extension cord having a $0.0600\Omega$ resistance and through which 5.00 A is flowing; (b) a cheaper cord utilizing thinner wire and with a resistance of $0.300\Omega$.
•
  0:38

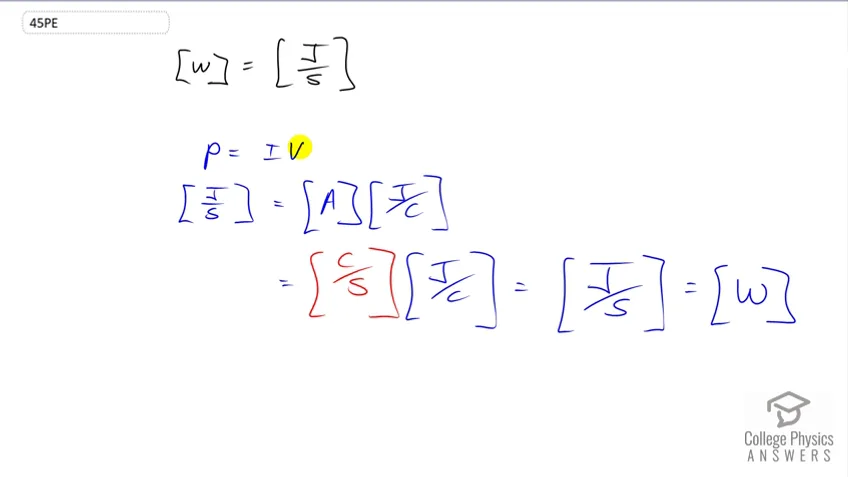

  Problem 45

  Verify that the units of a volt-ampere are watts, as implied by the equation $P=IV$.
•
  1:26
  Problem 46

  Show that the units $\frac{{\text{V}}^2}{\Omega }=1\text{ W}$, as implied by the equation $P=\frac{V^2}{R}$.
•
  1:12

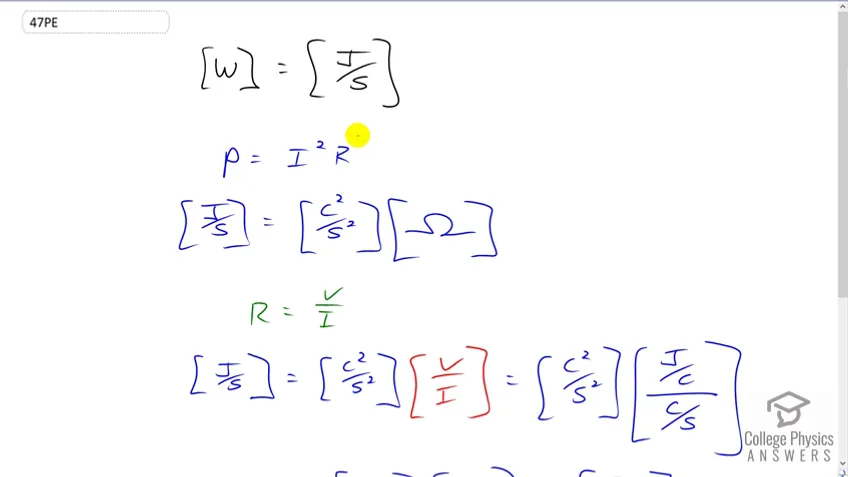

  Problem 47

  Show that the units $1{\text{ V}}^2\text{/}\Omega =1\text{ W}$, as implied by the equation $P=\frac{V^2}{R}$.
•
  1:01
  Problem 48

  Verify the energy unit equivalence that $1\text{ kW}\cdot \text{h}=3.60\times 10^6\text{ J}$.
•
  0:37

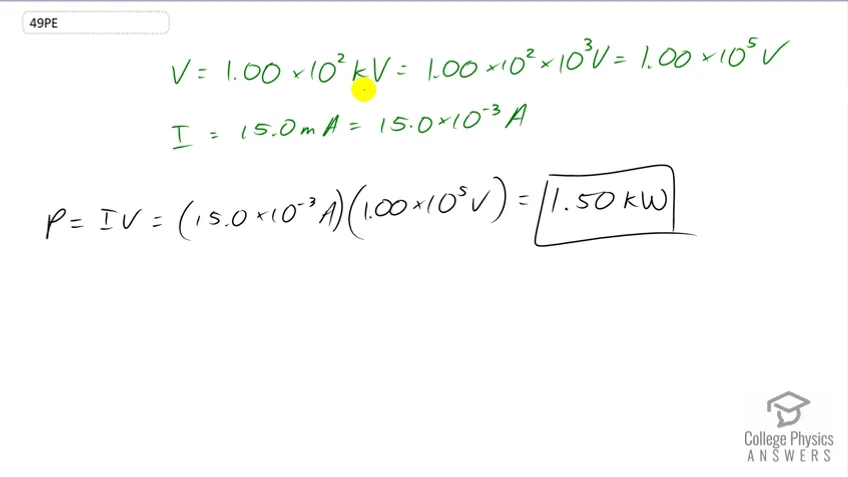

  Problem 49

  Electrons in an X-ray tube are accelerated through $1.00\times 10^2\text{ kV}$ and directed toward a target to produce X-rays. Calculate the power of the electron beam in this tube if it has a current of 15.0 mA.
•
  1:12

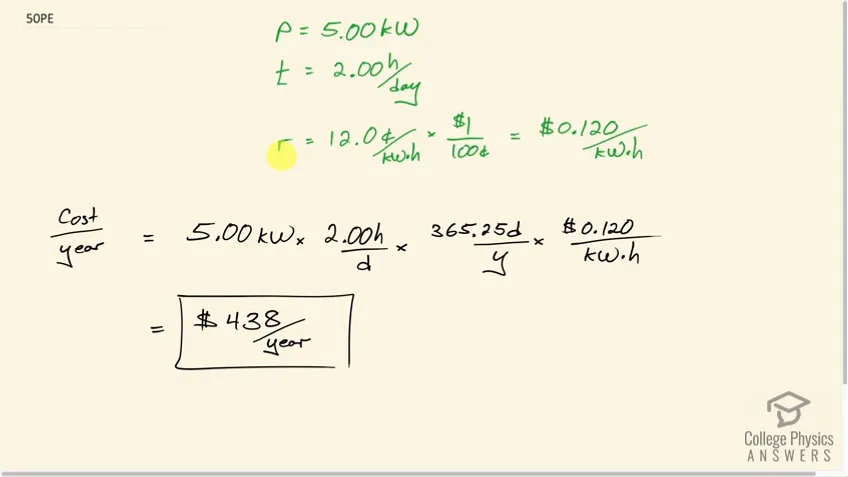

  Problem 50

  An electric water heater consumes 5.00 kW for 2.00 h per day. What is the cost of running it for one year if electricity costs $12.0\text{ cents/KW}\cdot \text{h}$? See Figure 20.41.
•
  1:30

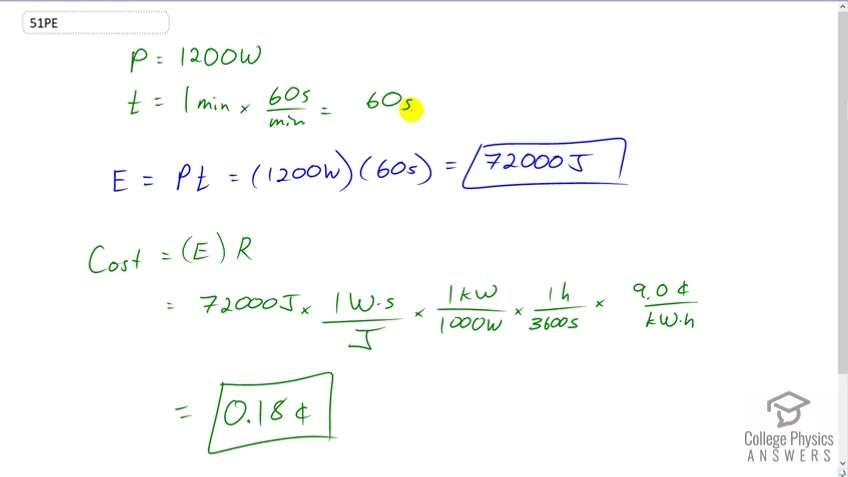

  Problem 51

  With a 1200-W toaster, how much electrical energy is needed to make a slice of toast (cooking time = 1 minute)? At $9.0\text{ cents/kW}\cdot \text{h}$, how much does this cost?
•
  2:17

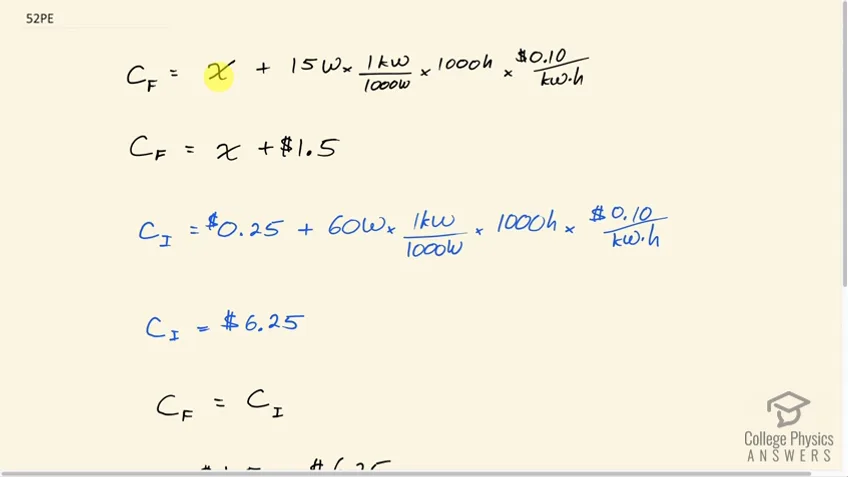

  Problem 52

  What would be the maximum cost of a CFL such that the total cost (investment plus operating) would be the same for both CFL and incandescent 60-W bulbs? Assume the cost of the incandescent bulb is 25 cents and that electricity costs 10 cents/kWh. Calculate the cost for 1000 hours, as in the cost effectiveness of CFL example.
•
  1:52

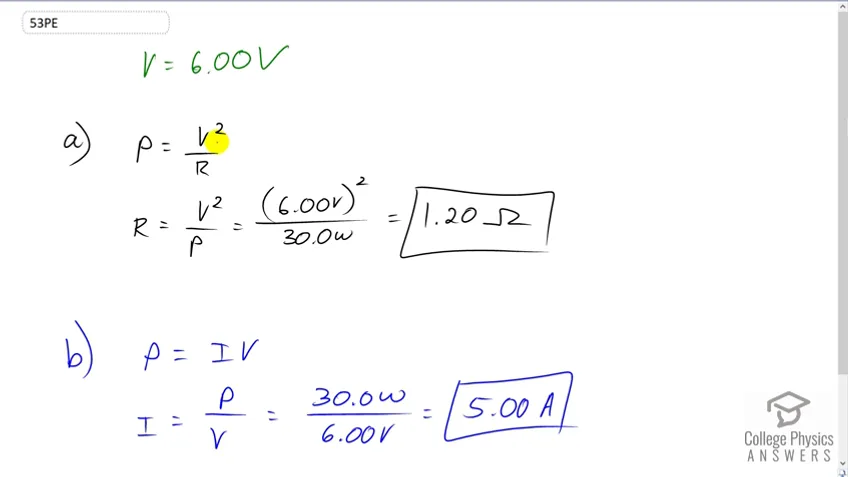

  Problem 53

  Some makes of older cars have 6.00-V electrical systems. (a) What is the hot resistance of a 30.0-W headlight in such a car? (b) What current flows through it?
•
  1:28
  Problem 54

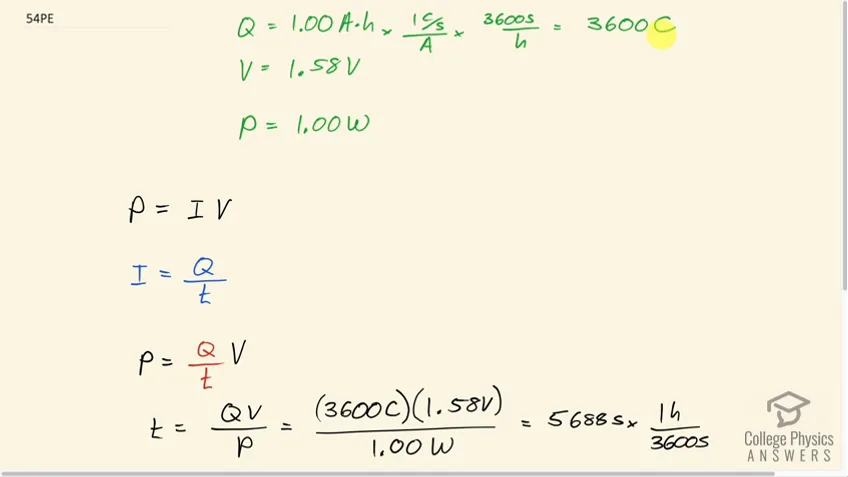

  Alkaline batteries have the advantage of putting out constant voltage until very nearly the end of their life. How long will an alkaline battery rated at $1.00\text{ A}\cdot \text{h}$ and 1.58 V keep a 1.00-W flashlight bulb burning?
•
  0:43

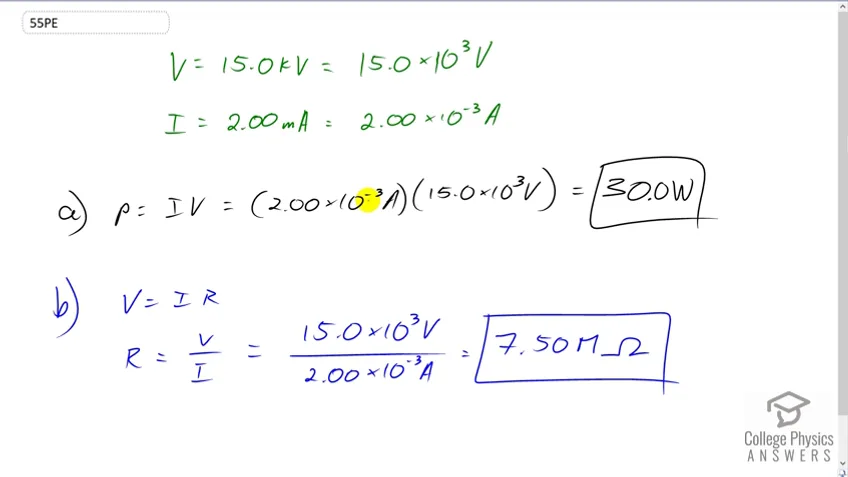

  Problem 55

  A cauterizer, used to stop bleeding in surgery, puts out 2.00 mA at 15.0 kV. (a) What is its power output? (b) What is the resistance of the path?
•
  1:39

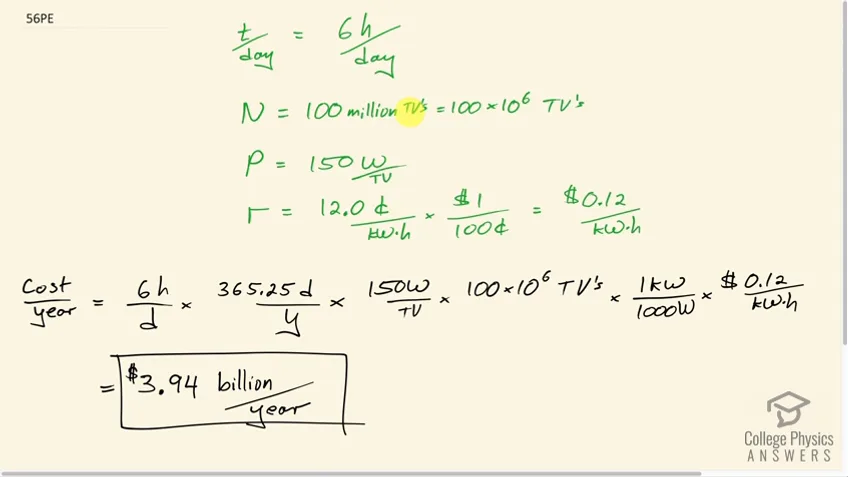

  Problem 56

  The average television is said to be on 6 hours per day. Estimate the yearly cost of electricity to operate 100 million TVs, assuming their power consumption averages 150 W and the cost of electricity averages $12.0\text{ cents/kW}\cdot \text{h}$.
•
  3:38
  Problem 57

  An old light bulb draws only 50.0 W, rather than its original 60.0 W, due to evaporative thinning of its filament. By what factor is its diameter reduced, assuming uniform thinning along its length? Neglect any effects caused by temperature differences.
•
  2:01

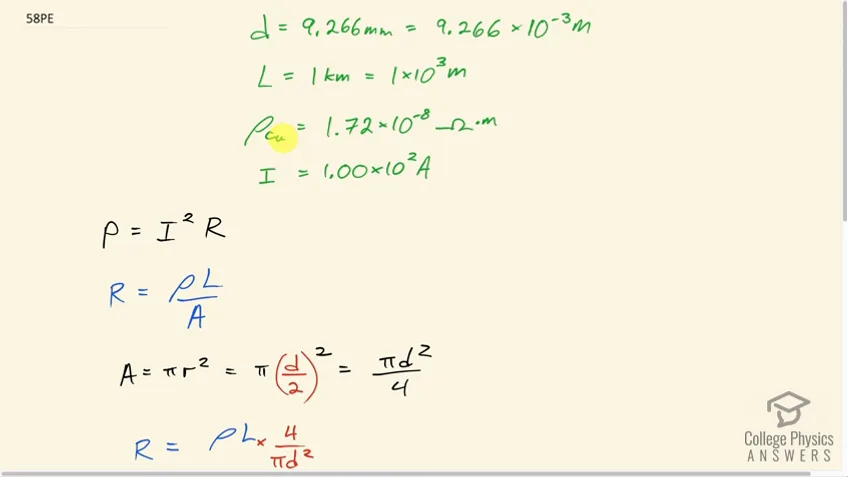

  Problem 58

  00-gauge copper wire has a diameter of 9.266 mm. Calculate the power loss in a kilometer of such wire when it carries $1.00\times 10^2\text{ A}$.
•
  4:48
  Problem 59

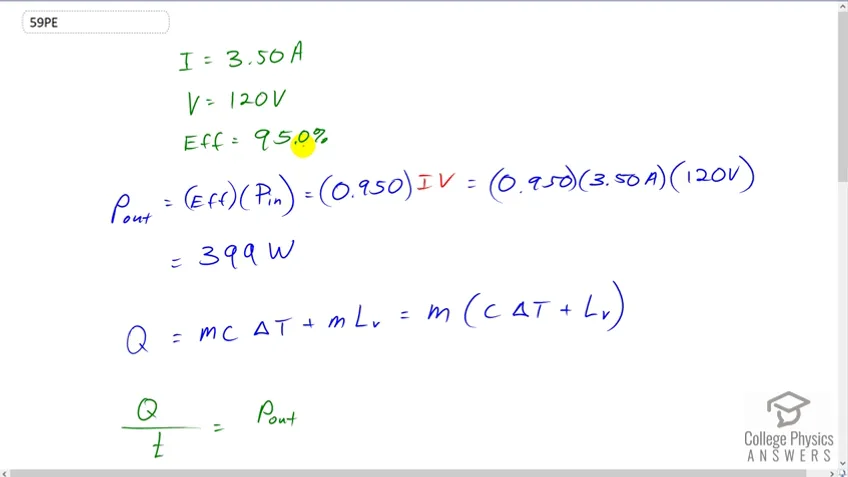

  Cold vaporizers pass a current through water, evaporating it with only a small increase in temperature. One such home device is rated at 3.50 A and utilizes 120 V AC with 95.0% efficiency. (a) What is the vaporization rate in grams per minute? (b) How much water must you put into the vaporizer for 8.00 h of overnight operation? (See Figure 20.42.)
•
  2:45

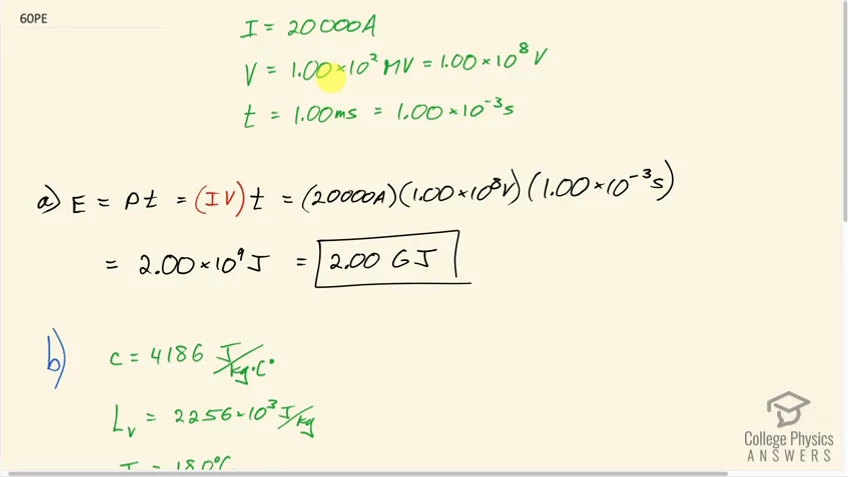

  Problem 60

  (a) What energy is dissipated by a lightning bolt having a 20,000-A current, a voltage of $1.00\times 10^2\text{ MV}$ , and a length of 1.00 ms? (b) What mass of tree sap could be raised from $18.0^{\circ }\text{C}$ to its boiling point and then evaporated by this energy, assuming sap has the same thermal characteristics as water?
•
  3:17

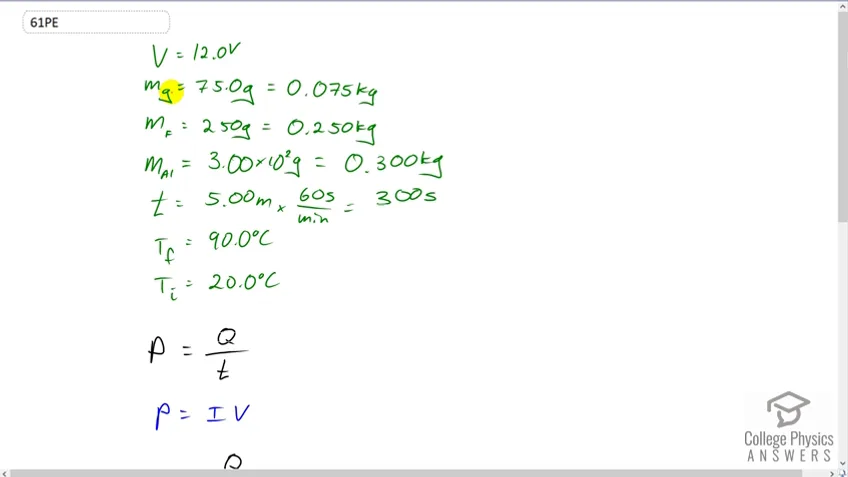

  Problem 61

  What current must be produced by a 12.0-V battery-operated bottle warmer in order to heat 75.0 g of glass, 250 g of baby formula, and $3.00\times 10^2\text{ g}$ of aluminum from $20.0^{\circ }\text{C}$ to $90.0^{\circ }\text{C}$ in 5.00 min?
•
  3:56

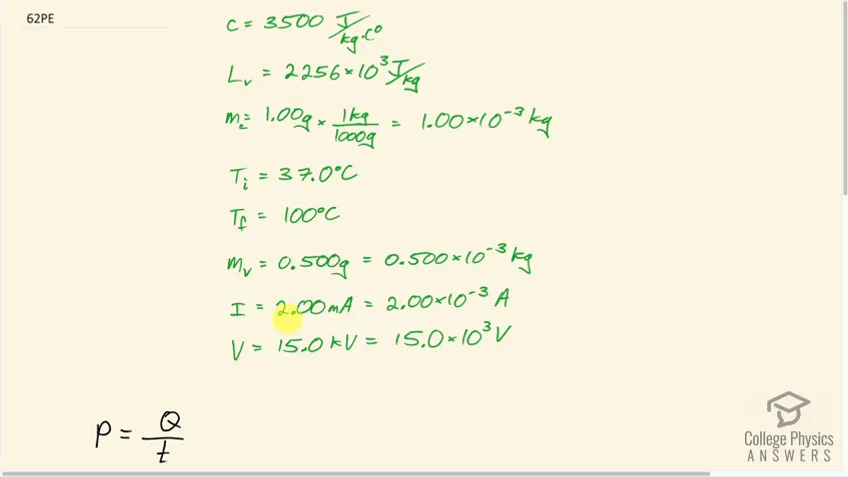

  Problem 62

  How much time is needed for a surgical cauterizer to raise the temperature of 1.00 g of tissue from $37.0^{\circ }\text{C}$ to $100^{\circ }\text{C}$ and then boil away 0.500 g of water, if it puts out 2.00 mA at 15.0 kV? Ignore heat transfer to the surroundings.
•
  3:48
  Problem 63

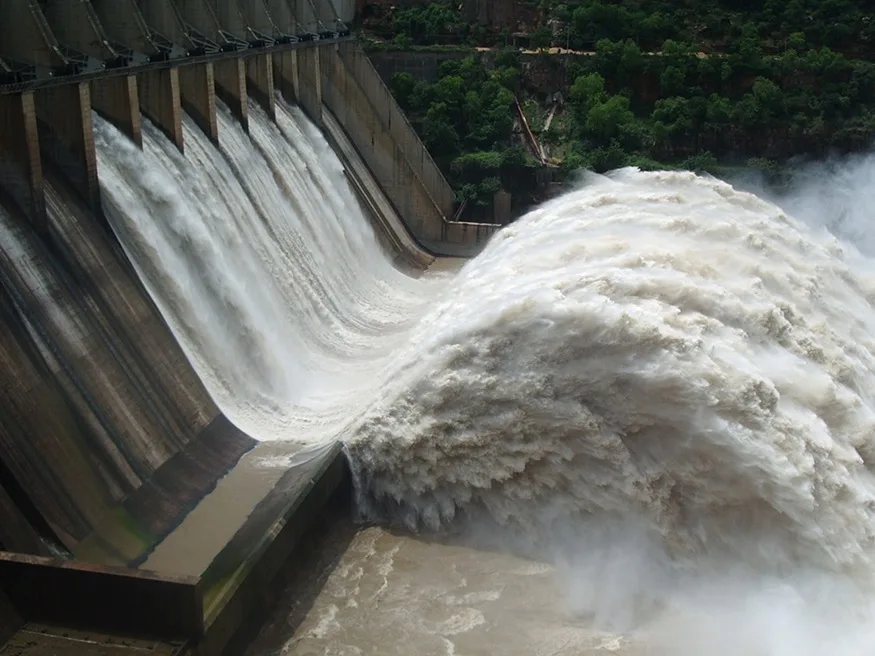

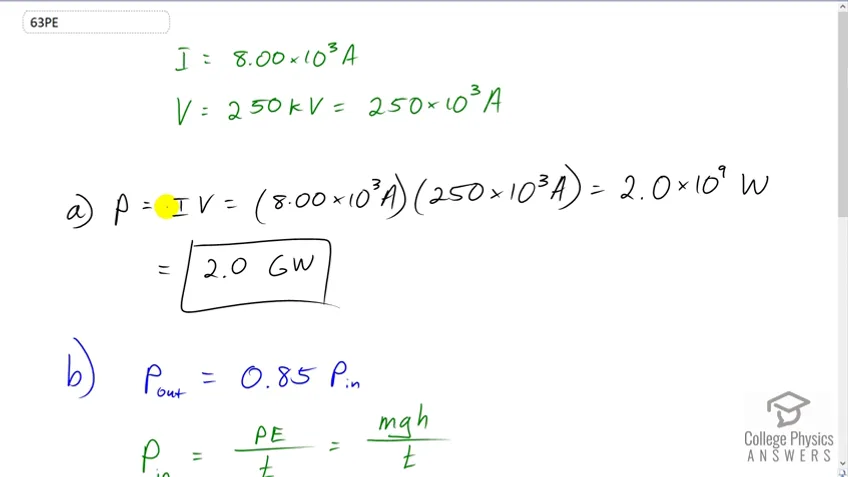

  Hydroelectric generators (see Figure 20.43) at Hoover Dam produce a maximum current of $8.00\times 10^3\text{ A}$ at 250 kV. (a) What is the power output? (b) The water that powers the generators enters and leaves the system at low speed (thus its kinetic energy does not change) but loses 160 m in altitude. How many cubic meters per second are needed, assuming 85.0% efficiency?
•
  6:40

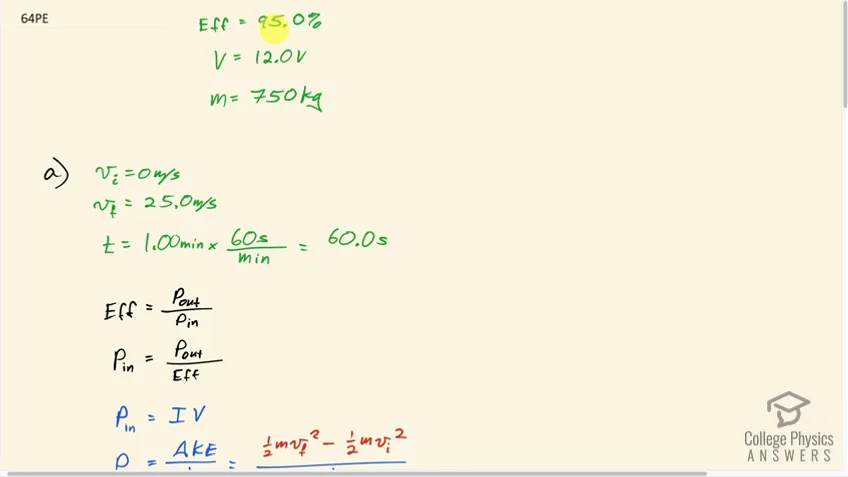

  Problem 64

  (a) Assuming 95.0% efficiency for the conversion of electrical power by the motor, what current must the 12.0-V batteries of a 750-kg electric car be able to supply: (a) To accelerate from rest to 25.0 m/s in 1.00 min? (b) To climb a $2.00\times 10^2\text{ m}$ high hill in 2.00 min at a constant 25.0-m/s speed while exerting $5.00\times 10^2\text{ N}$ of force to overcome air resistance and friction? (c) To travel at a constant 25.0-m/s speed, exerting a $5.00\times 10^2\text{ N}$ force to overcome air resistance and friction? See Figure 20.44.
•
  3:56

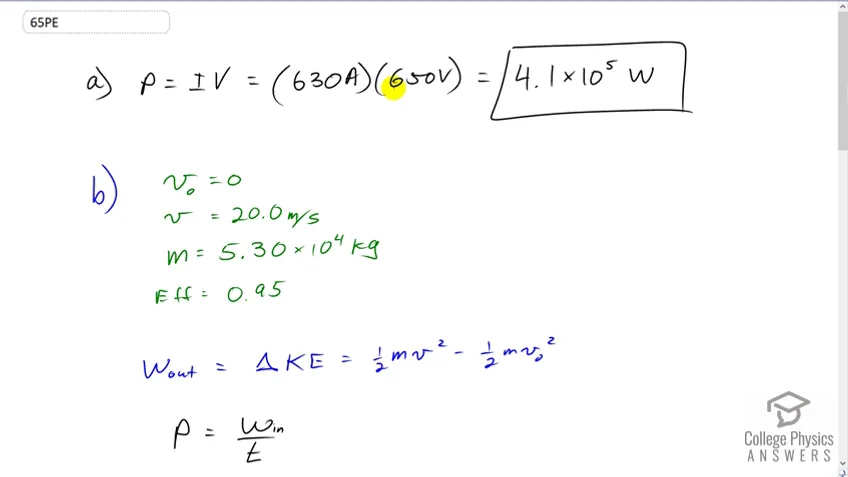

  Problem 65

  A light-rail commuter train draws 630 A of 650-V DC electricity when accelerating. (a) What is its power consumption rate in kilowatts? (b) How long does it take to reach 20.0 m/s starting from rest if its loaded mass is $5.30\times 10^4\text{ kg}$ , assuming 95.0% efficiency and constant power? (c) Find its average acceleration. (d) Discuss how the acceleration you found for the light-rail train compares to what might be typical for an automobile.
•
  4:18

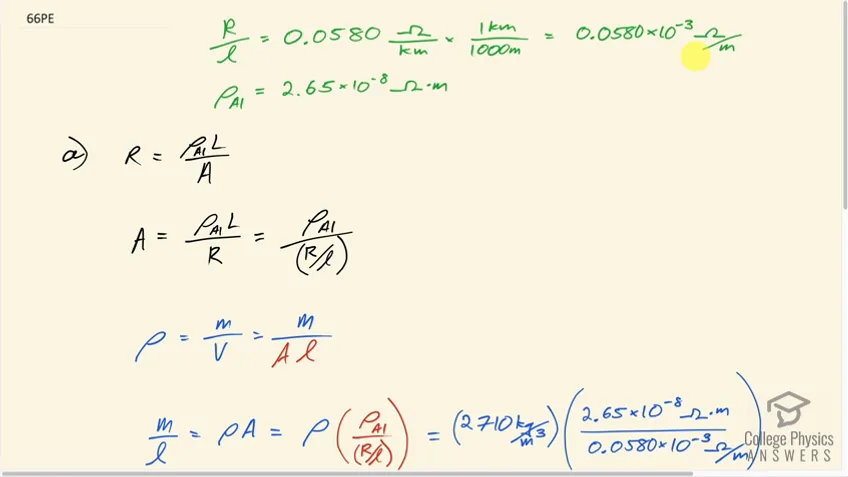

  Problem 66

  (a) An aluminum power transmission line has a resistance of $0.0580\Omega \text{/km}$. What is its mass per kilometer? (b) What is the mass per kilometer of a copper line having the same resistance?
•
  2:54

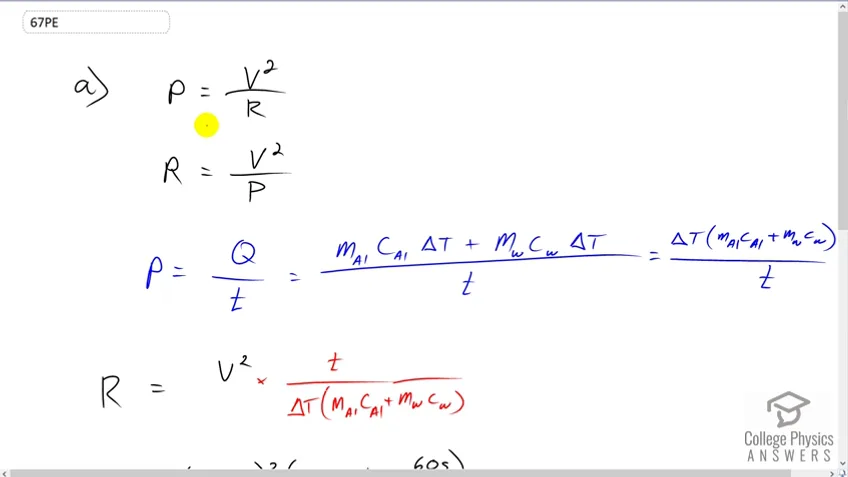

  Problem 67

  (a) An immersion heater utilizing 120 V can raise the temperature of a $1.00\times 10^2\text{ g}$ aluminum cup containing 350 g of water from $20.0^{\circ }\text{C}$ to $95.0^{\circ }\text{C}$ in 2.00 min. Find its resistance, assuming it is constant during the process. (b) A lower resistance would shorten the heating time. Discuss the practical limits to speeding the heating by lowering the resistance.
•
  4:48

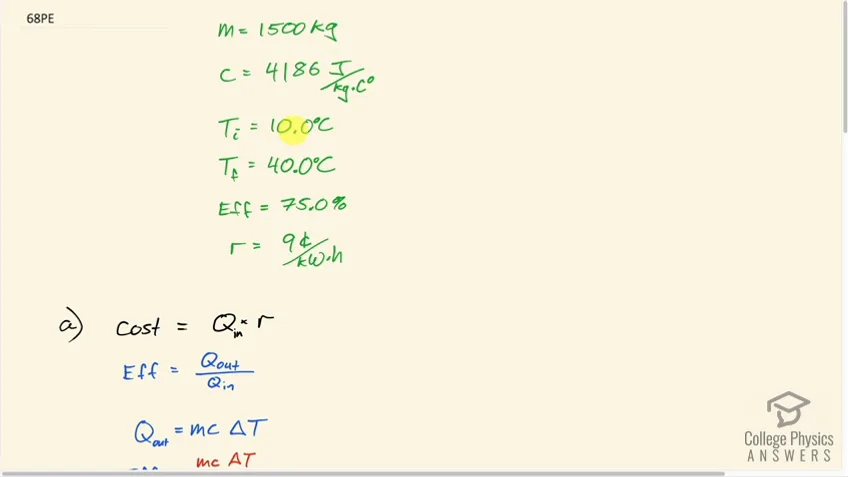

  Problem 68

  (a) What is the cost of heating a hot tub containing 1500 kg of water from $10.0^{\circ }\text{C}$ to $40.0^{\circ }\text{C}$ , assuming 75.0% efficiency to account for heat transfer to the surroundings? The cost of electricity is 9 cents/kW ⋅ h . (b) What current was used by the 220-V AC electric heater, if this took 4.00 h?
•
  1:37

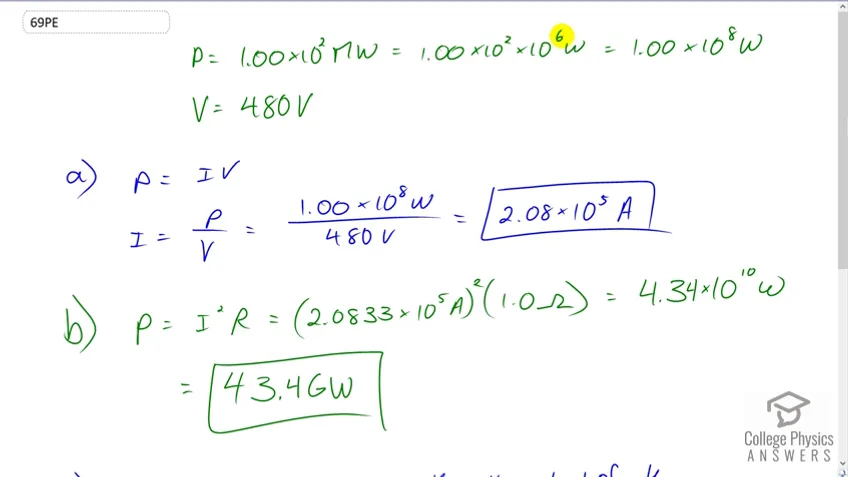

  Problem 69

  (a) What current is needed to transmit $1.00\times 10^2\text{ MW}$ of power at 480 V? (b) What power is dissipated by the transmission lines if they have a $1.00\Omega$ resistance? (c) What is unreasonable about this result? (d) Which assumptions are unreasonable, or which premises are inconsistent?
•

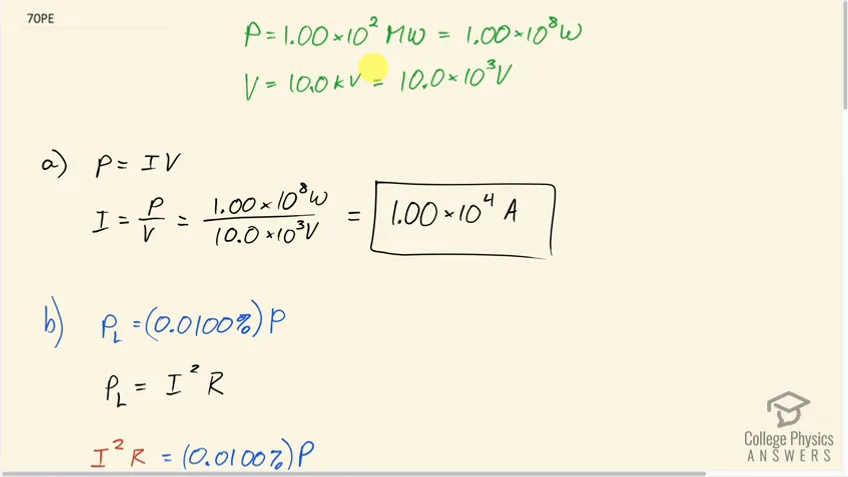

  4:41
  Problem 70

  (a) What current is needed to transmit $1.00\times 10^2\text{ MW}$ of power at 10.0 kV? (b) Find the resistance of 1.00 km of wire that would cause a 0.0100% power loss. (c) What is the diameter of a 1.00-km-long copper wire having this resistance? (d) What is unreasonable about these results? (e) Which assumptions are unreasonable, or which premises are inconsistent?

20.5 Alternating Current versus Direct Current

•
  2:14

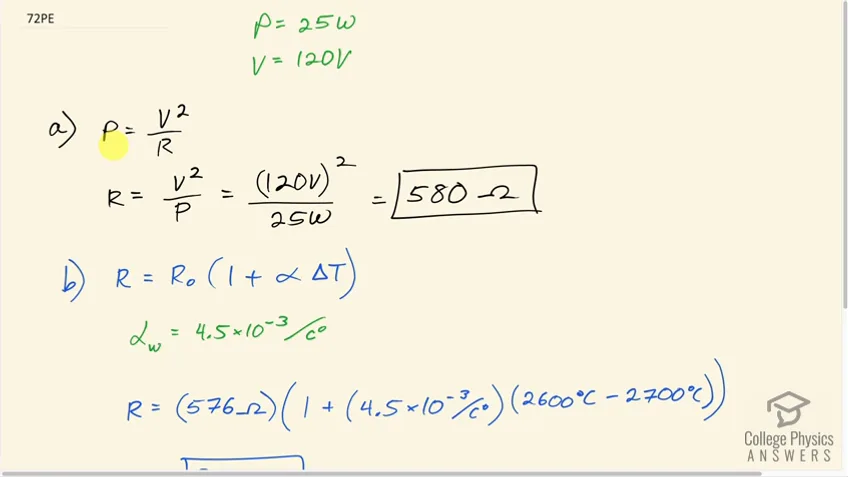

  Problem 72

  (a) What is the hot resistance of a 25-W light bulb that runs on 120-V AC? (b) If the bulb’s operating temperature is $2700^{\circ }\text{C}$, what is its resistance at $2600^{\circ }\text{C}$?
•
  0:14
  Problem 73

  Certain heavy industrial equipment uses AC power that has a peak voltage of 679 V. What is the rms voltage?
•
  0:31
  Problem 74

  A certain circuit breaker trips when the rms current is 15.0 A. What is the corresponding peak current?
•
  0:19
  Problem 75

  Military aircraft use 400-Hz AC power, because it is possible to design lighter-weight equipment at this higher frequency. What is the time for one complete cycle of this power?
•
  1:36
  Problem 76

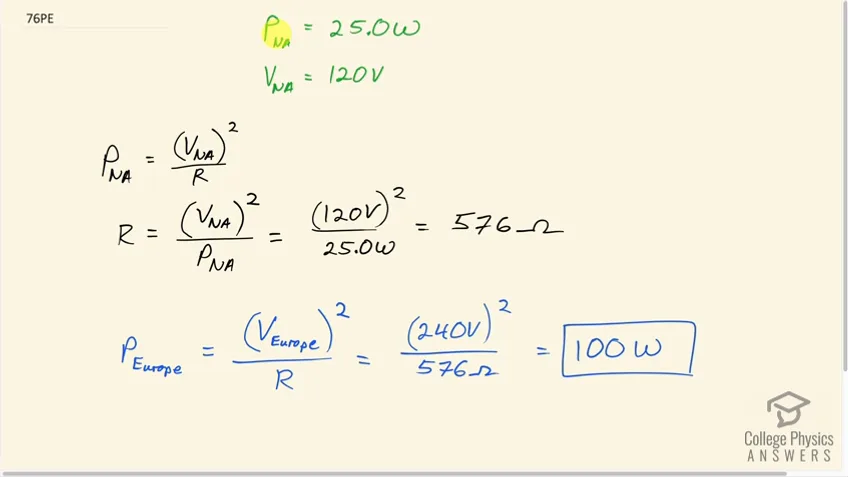

  A North American tourist takes his 25.0-W, 120-V AC razor to Europe, finds a special adapter, and plugs it into 240 V AC. Assuming constant resistance, what power does the razor consume as it is ruined?
•
  1:21

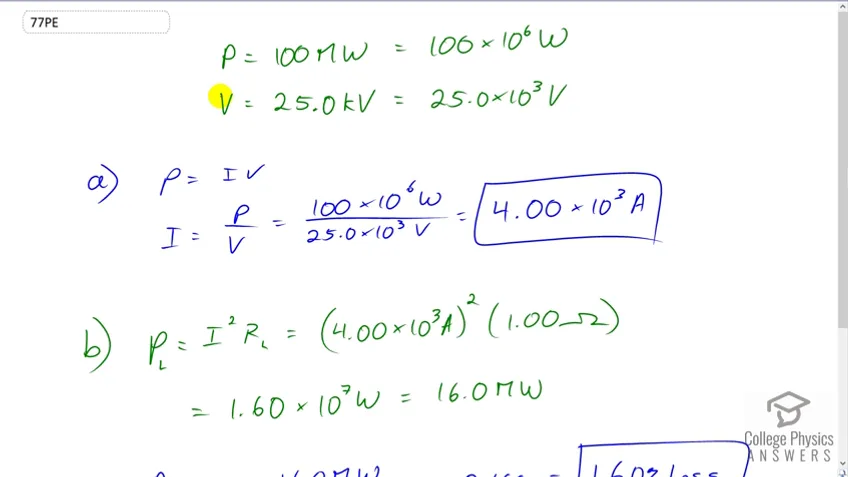

  Problem 77

  In this problem, you will verify statements made at the end of the power losses for Example 20.10. (a) What current is needed to transmit 100 MW of power at a voltage of 25.0 kV? (b) Find the power loss in a $1.00\Omega$ transmission line. (c) What percent loss does this represent?
•
  1:13
  Problem 78

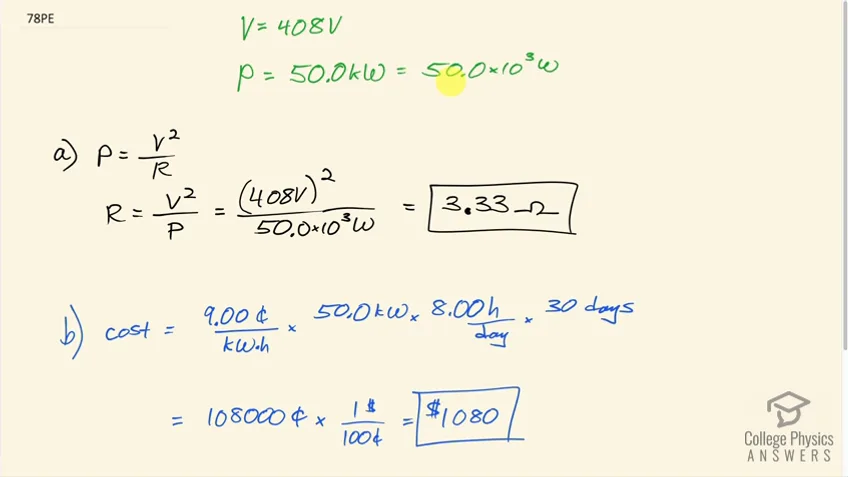

  A small office-building air conditioner operates on 408-V AC and consumes 50.0 kW. (a) What is its effective resistance? (b) What is the cost of running the air conditioner during a hot summer month when it is on 8.00 h per day for 30 days and electricity costs $9.00\text{ cents/kW}\cdot$?
•
  1:28

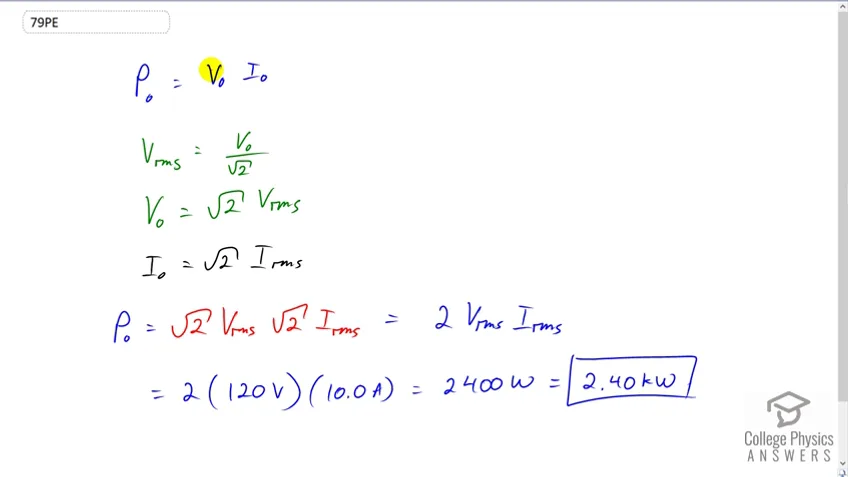

  Problem 79

  What is the peak power consumption of a 120-V AC microwave oven that draws 10.0 A?
•
  1:05

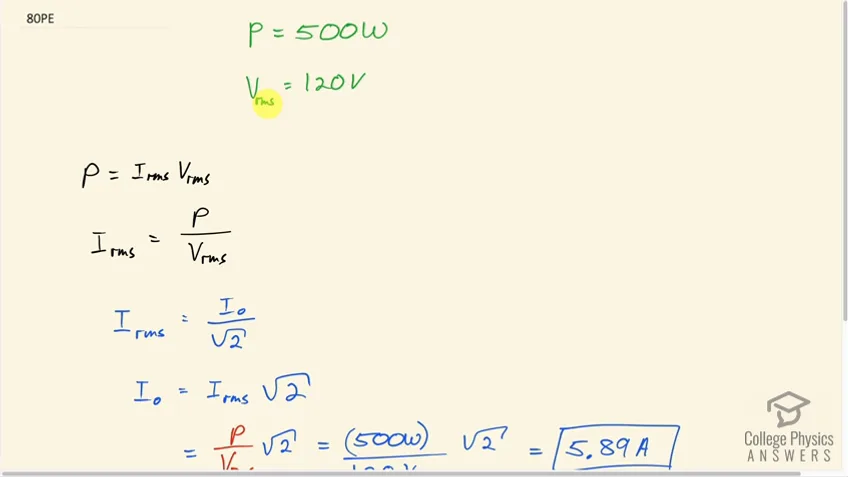

  Problem 80

  What is the peak current through a 500-W room heater that operates on 120-V AC power?
•
  4:30
  Problem 81

  Two different electrical devices have the same power consumption, but one is meant to be operated on 120-V AC and the other on 240-V AC. (a) What is the ratio of their resistances? (b) What is the ratio of their currents? (c) Assuming its resistance is unaffected, by what factor will the power increase if a 120-V AC device is connected to 240-V AC?
•
  5:13

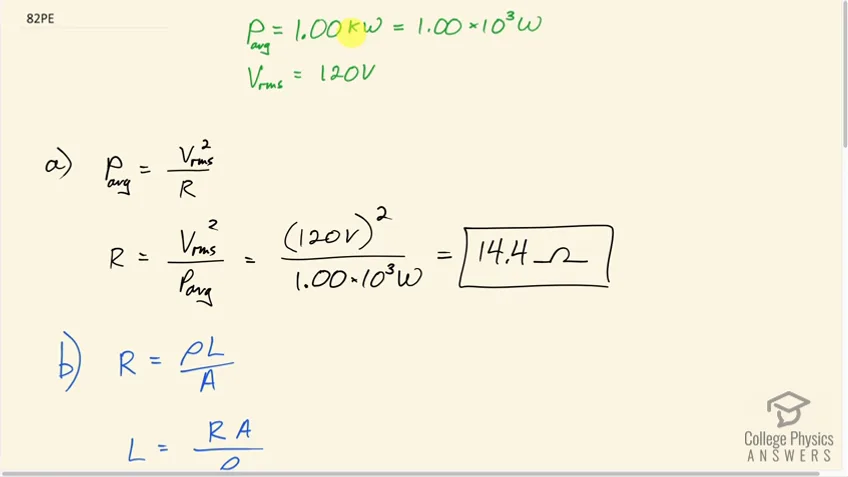

  Problem 82

  Nichrome wire is used in some radiative heaters. (a) Find the resistance needed if the average power output is to be 1.00 kW utilizing 120-V AC. (b) What length of Nichrome wire, having a cross-sectional area of $5.00{\text{ mm}}^2$, is needed if the operating temperature is $500^{\circ }\text{C}$? (c) What power will it draw when first switched on?
•
  6:02

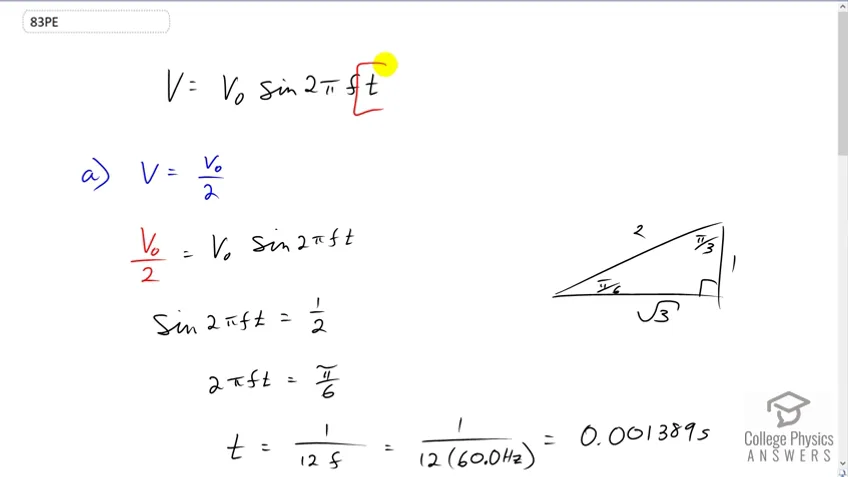

  Problem 83

  Find the time after $t=0$ when the instantaneous voltage of 60-Hz AC first reaches the following values: (a) $\frac{V_o}{2}$ (b) $V_o$ (c) 0.
•
  7:08

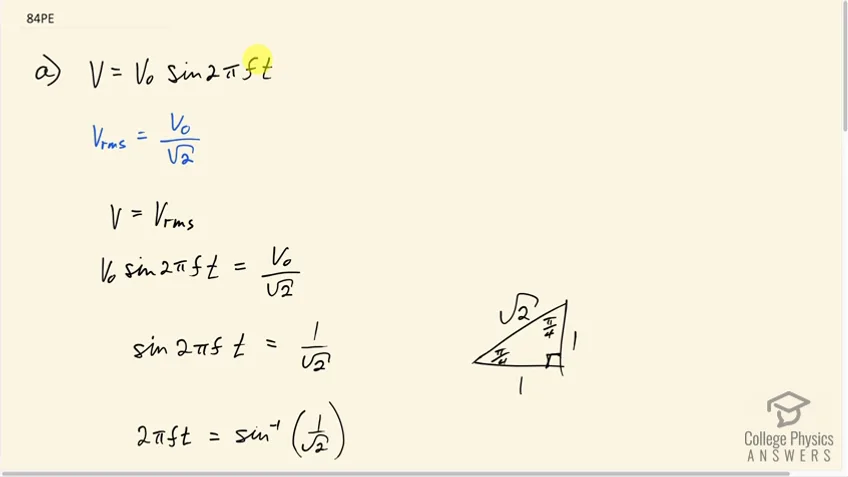

  Problem 84

  (a) At what two times in the first period following $t=0$ does the instantaneous voltage in 60=Hz AC equal $V_{\text{rms}}$? (b) $-V_{\text{rms}}$

20.6 Electric Hazards and the Human Body

•
  0:32

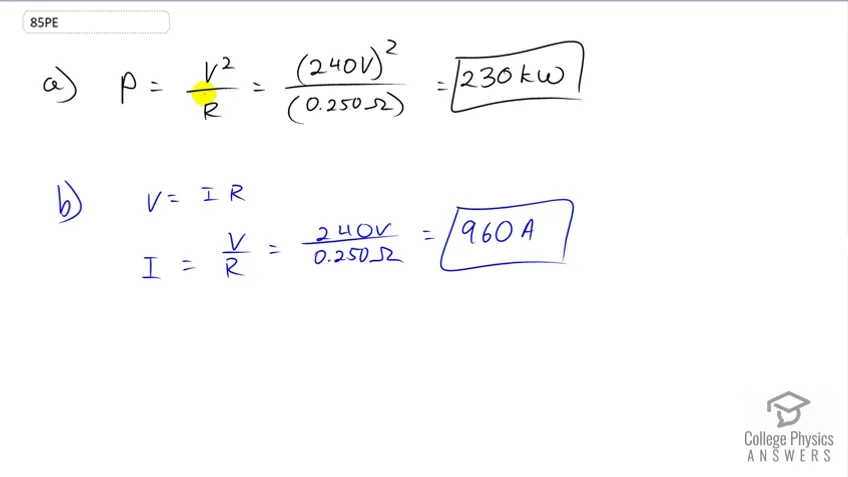

  Problem 85

  (a) How much power is dissipated in a short circuit of 240-V AC through a resistance of $0.250\Omega$ ? (b) What current flows?
•
  0:45

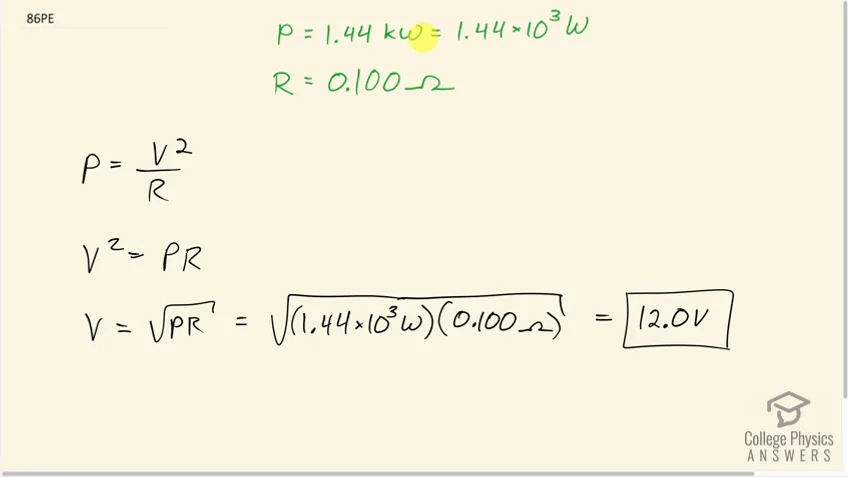

  Problem 86

  What voltage is involved in a 1.44 kW short circuit through a $0.100\Omega$ resitance?
•
  0:50
  Problem 87

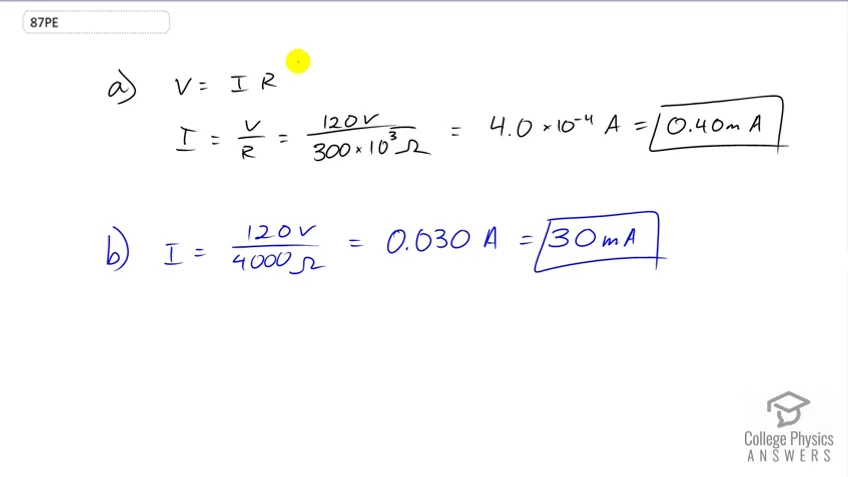

  Find the current through a person and identify the likely effect on her if she touches a 120-V AC source: (a) if she is standing on a rubber mat and offers a total resistance of $300\text{ k}\Omega$ ; (b) if she is standing barefoot on wet grass and has a resistance of only $4000\Omega$.
•
  1:03
  Problem 88

  While taking a bath, a person touches the metal case of a radio. The path through the person to the drainpipe and ground has a resistance of $4000\Omega$. What is the smallest voltage on the case of the radio that could cause ventricular fibrillation?
•
  0:54
  Problem 89

  Foolishly trying to fish a burning piece of bread from a toaster with a metal butter knife, a man comes into contact with 120-V AC. He does not even feel it since, luckily, he is wearing rubber-soled shoes. What is the minimum resistance of the path the current follows through the person?
•
  0:58

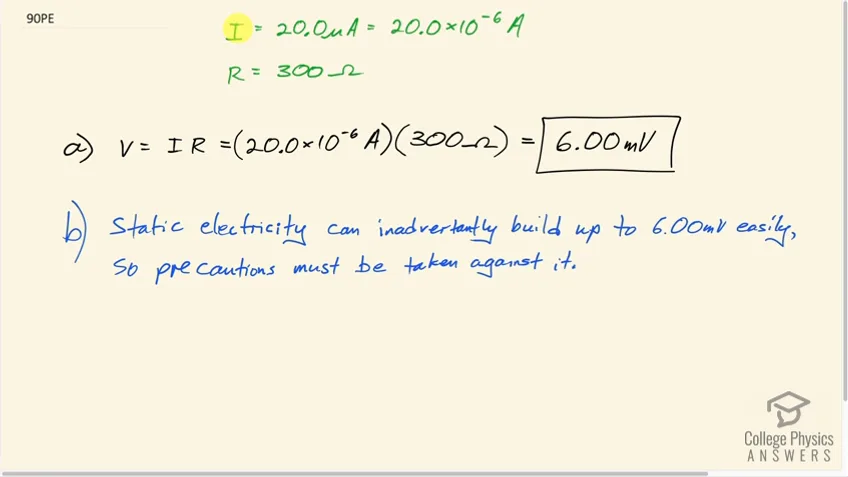

  Problem 90

  (a) During surgery, a current as small as $20.0\mu \text{A}$ applied directly to the heart may cause ventricular fibrillation. If the resistance of the exposed heart is $300\Omega$, what is the smallest voltage that poses this danger? (b) Does your answer imply that special electrical safety precautions are needed?
•
  1:50

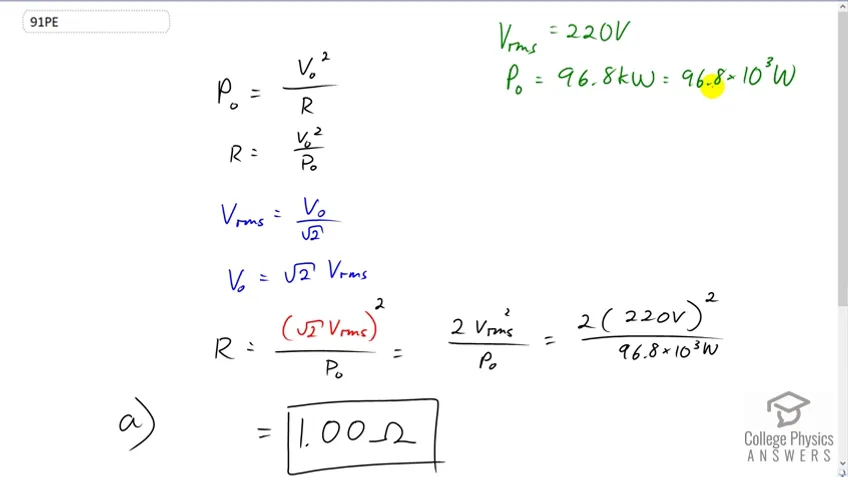

  Problem 91

  (a) What is the resistance of a 220-V AC short circuit that generates a peak power of 96.8 kW? (b) What would the average power be if the voltage was 120 V AC?
•
  3:44

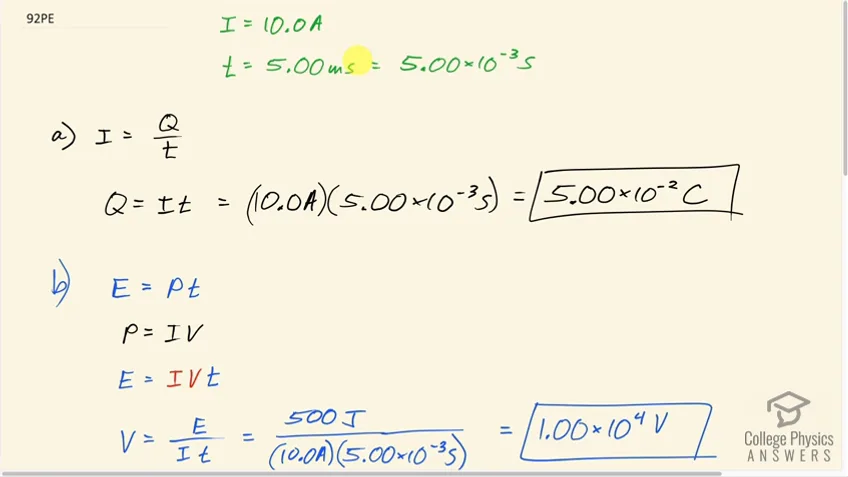

  Problem 92

  A heart defibrillator passes 10.0 A through a patient’s torso for 5.00 ms in an attempt to restore normal beating. (a) How much charge passed? (b) What voltage was applied if 500 J of energy was dissipated? (c) What was the path’s resistance? (d) Find the temperature increase caused in the 8.00 kg of affected tissue.
•
  2:29
  Problem 93

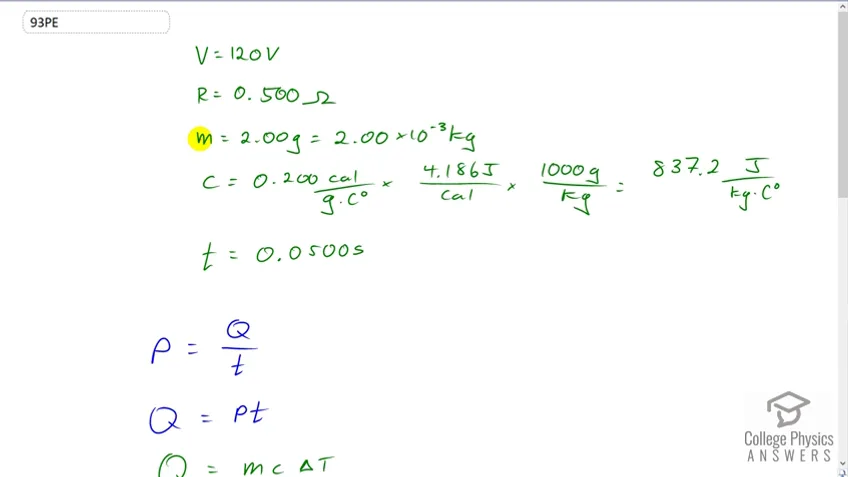

  A short circuit in a 120-V appliance cord has a $0.500\Omega$ resistance. Calculate the temperature rise of the 2.00 g of surrounding materials, assuming their specific heat capacity is $0.200\text{ cal/g}{\cdot }^{\circ }\text{C}$ and that it takes 0.0500 s for a circuit breaker to interrupt the current. Is this likely to be damaging?

20.7 Nerve Conduction—Electrocardiograms

•
  1:10
  Problem 95

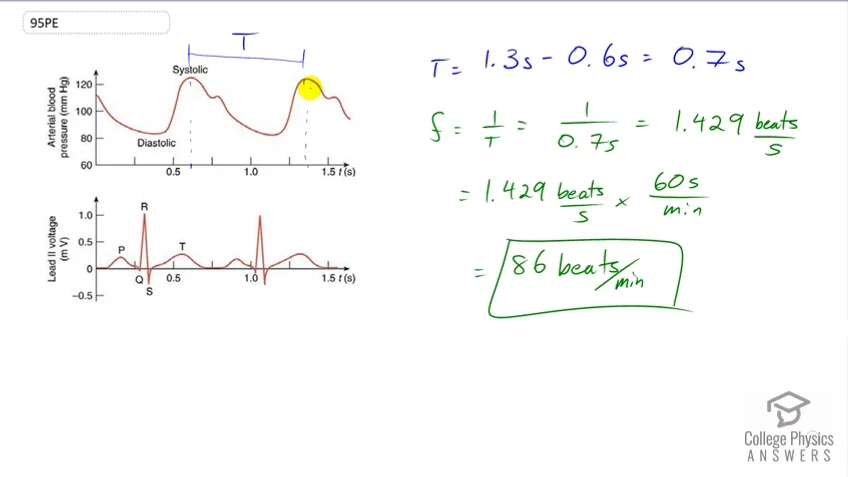

  Use the ECG in Figure 20.34 to determine the heart rate in beats per minute assuming a constant time between beats.
•
  2:16
  Problem 96

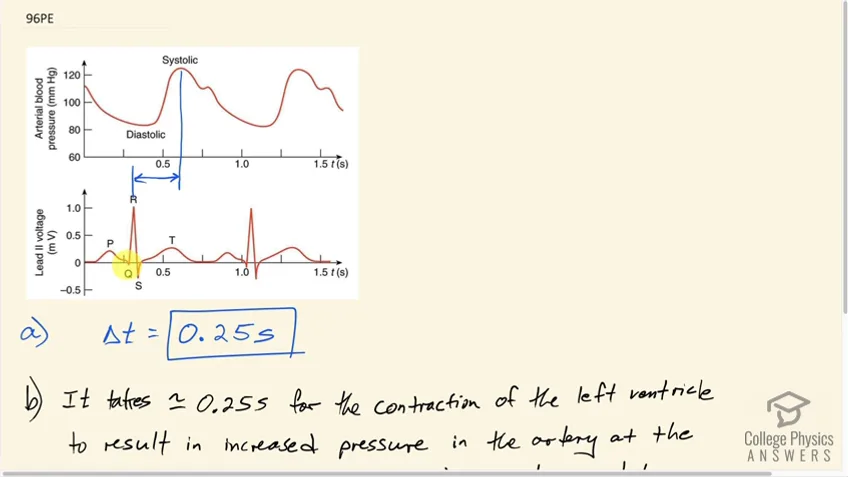

  (a) Referring to Figure 20.34, find the time systolic pressure lags behind the middle of the QRS complex. (b) Discuss the reasons for the time lag.

Test Prep for AP® Courses
